(06-44) - TRANSMISSION (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845,846, 87396486,487) - SHAFT, IDLER & PRIMARY

Запчасти Case 588G (06-44) - TRANSMISSION (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845,846, 87396486,487) - SHAFT, IDLER & PRIMARY (06) - POWER TRAIN

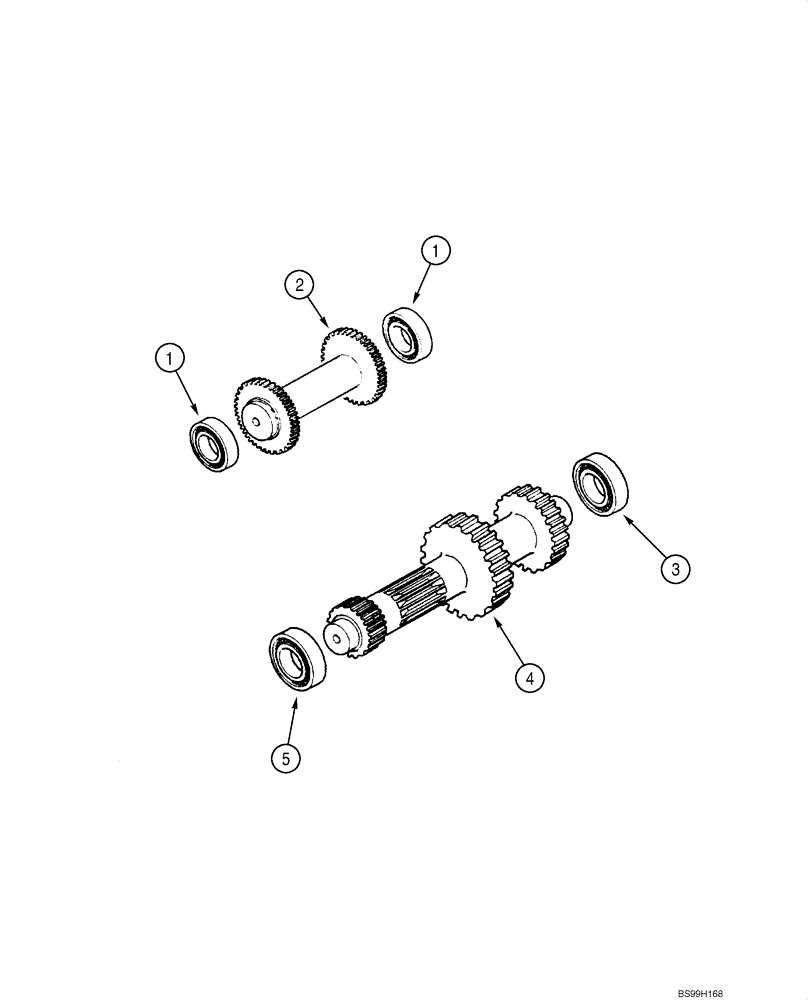

Схема запчастей Case 588G - (06-44) - TRANSMISSION (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845,846, 87396486,487) - SHAFT, IDLER & PRIMARY (06) - POWER TRAIN
1
1
5
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87396486

TRANSMISSION

Two Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 06-39 - 06-48B; Replaces 329081A1, 329081A2, 329081A3, 87456845

1шт.

1

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

1

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87396487

TRANSMISSION

Four Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 06-39 - 06-49; Replaces 329082A1, 329082A2, 329082A3, 87456846

1шт.

1

87396487R

REMAN-TRANSMISSION

Remanufactured Transmission - Four Wheel Drive

1шт.

1

87396487C

CORE-TRANSMISSION

Return Part Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

2шт.

2

366237A1

SHAFT

Idler Shaft

1шт.

3

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

4

358646A1

SHAFT

Primary Shaft

1шт.

5

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

Snap Ring; Not Illustrated

1шт.
