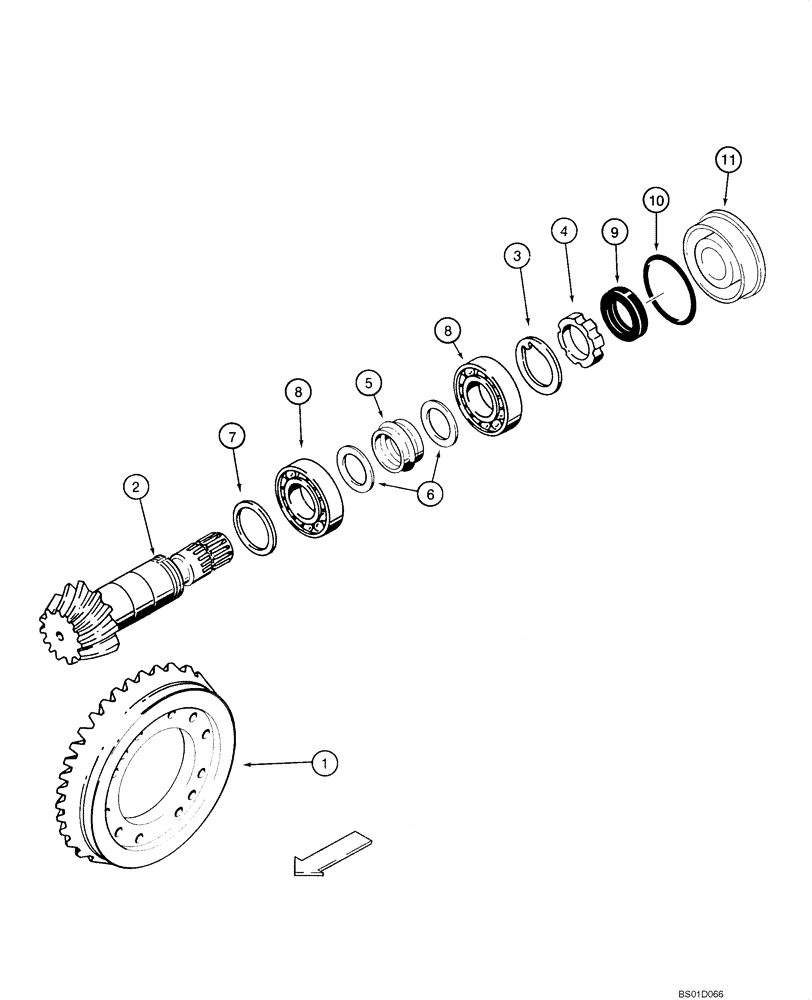

Запчасти Case 586G (06-08) - AXLE, REAR DRIVE (4WD) - RING AND PINION (06) - POWER TRAIN

144460A1

GEAR SET

Ring and Pinion, Incl 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, Pinion Gear

1шт.

3

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

4

K261014

RING NUT,M40 x 1.5

1шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

Differential

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Cover to Differential Carrier

1шт.

12

87395365

4WD AXLE ASSY

Rear, Incl. Parts On Figures 06-02 - 06-08; If Used; See Figure 06-01 For Remanufactured Axle Part Number

1шт.

12

87395365R

REMAN-AXLE DIFFERENT

586G, 588G, Both SERIES 3 FORKLIFT TIER 3

1шт.

12

87395365C

CORE-AXLE, MFD

Return Number

1шт.
