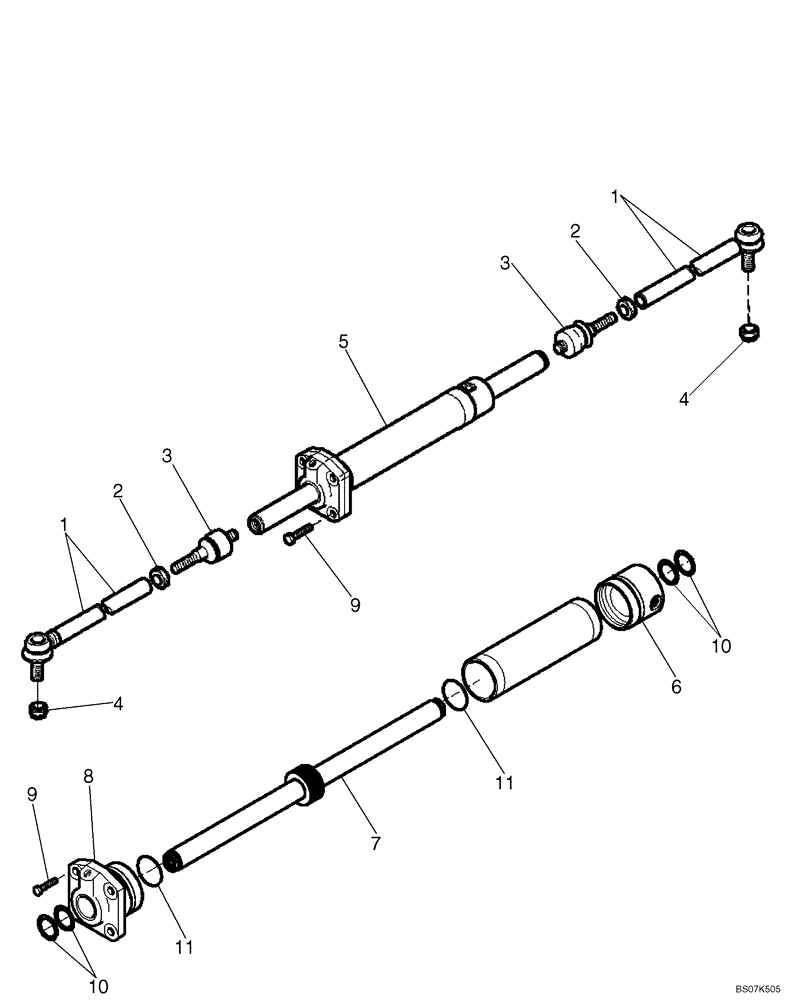

Запчасти Case 586G (06-04) - AXLE, REAR DRIVE (4WD) - CYLINDER, STEERING (06) - POWER TRAIN

144457A1

STEERING ARM

Incl 1 - 3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

Ball Joint

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

3

112509A1

BALL JOINT

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

2шт.

5

87710158

STEERING CYLINDER

Incl. 6 - 16, Order 87710144 Kit to Service Seals

1шт.

6

87710142

CYLINDER HEAD

C

1шт.

7

87710143

ROD

1шт.

8

87710141

CYLINDER END CAP

1шт.

9

87710137

BOLT

4шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

4шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

87710144

OIL SEAL

Incl. 10 - 16

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Cylinder, Serial Range: Flange-Cylinder

1шт.

12

87395365

4WD AXLE ASSY

Rear, Incl. Parts on Figures 06-02 - 06-08; If Used; See Figure 06-01 For Remanufactured Axle Part Number

1шт.

12

87395365R

REMAN-AXLE DIFFERENT

586G, 588G, Both SERIES 3 FORKLIFT TIER 3

1шт.

12

87395365C

CORE-AXLE, MFD

Return Number

1шт.
