1
87395365

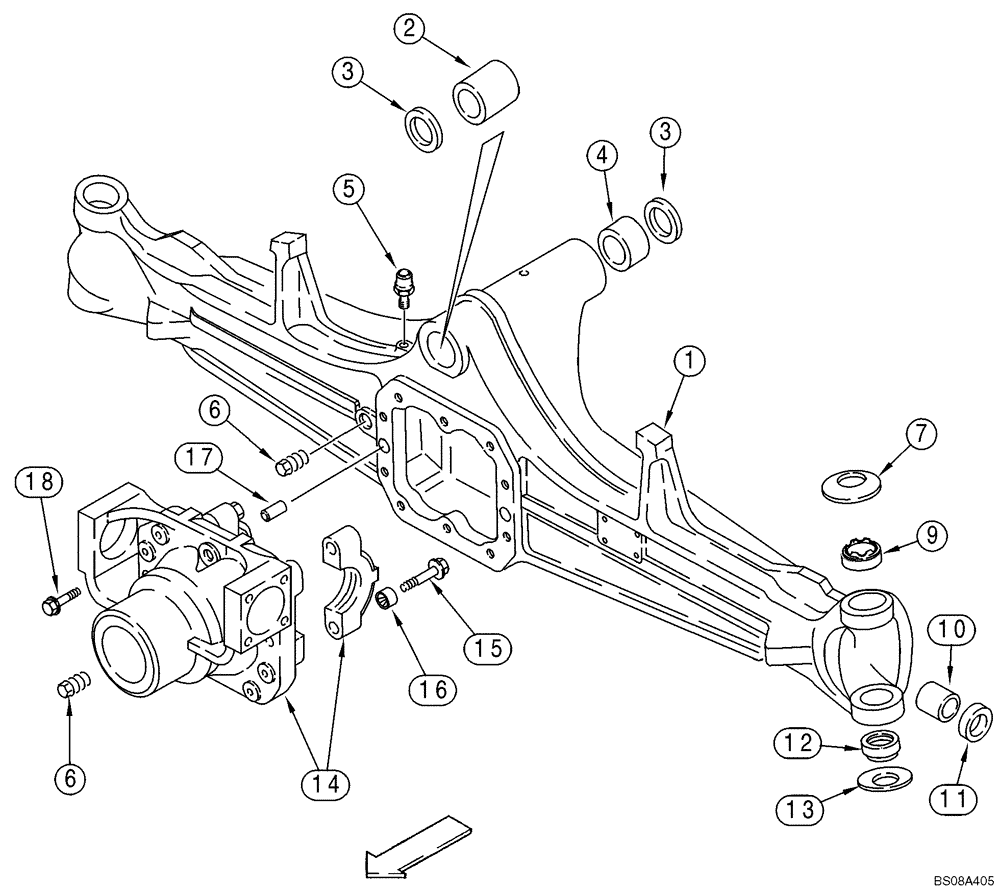

4WD AXLE ASSY
Rear, Incl. Parts on Figures 06-02 - 06-08; If Used; See Figure 06-01 For Remanufactured Axle Part Number
1шт.
1
87395365R
REMAN-AXLE DIFFERENT
586G, 588G, Both SERIES 3 FORKLIFT TIER 3
1шт.
1
87395365C
CORE-AXLE, MFD
Return Number
1шт.
1
427107A1
AXLE HOUSING
1шт.
2
D149725
BUSHING,59.75 OD x 54mm L
1шт.
3
N14367
SEALING RING,50mm ID x 60.1mm OD x 4mm Thk
2шт.
4
D149726
BUSHING,6.20mm ID x 9.60mm OD x 6mm L
1шт.
5
1966149C2
BREATHER
1шт.
6
A156873
PLUG, DRAIN,M22 x 1.5
2шт.
7
122270A1
BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th
Belleville, Upper
2шт.
9
87400286
BUSHING
2шт.
10
1966186C1
BUSHING
2шт.
11
87710155
SEALING RING
SEALRING
2шт.
12
100520A1
SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W
Two Piece
2шт.
13
122268A1
BELLEVILLE WASHER
Belleville, Lower
2шт.
87710131
SUPPORT
Differential Support Assembly, Incl. 14 - 16
1шт.
14
NSS
NOT SOLD SEPARAT
Carrier
1шт.
15
S301065
BOLT,Hex Flg, M14 x 75, 12.9
4шт.
16
1966136C1
BUSHING,15mm ID x 18mm OD x 12mm L
4шт.
17
1966138C1
DOWEL
2шт.
18
5194169
BOLT,Hex Flg, M12 x 33, 12.9
10шт.
B17575
FLUID
89 ml, Black RTV Silicone, Differential Carrier to Axle Housing
1шт.
