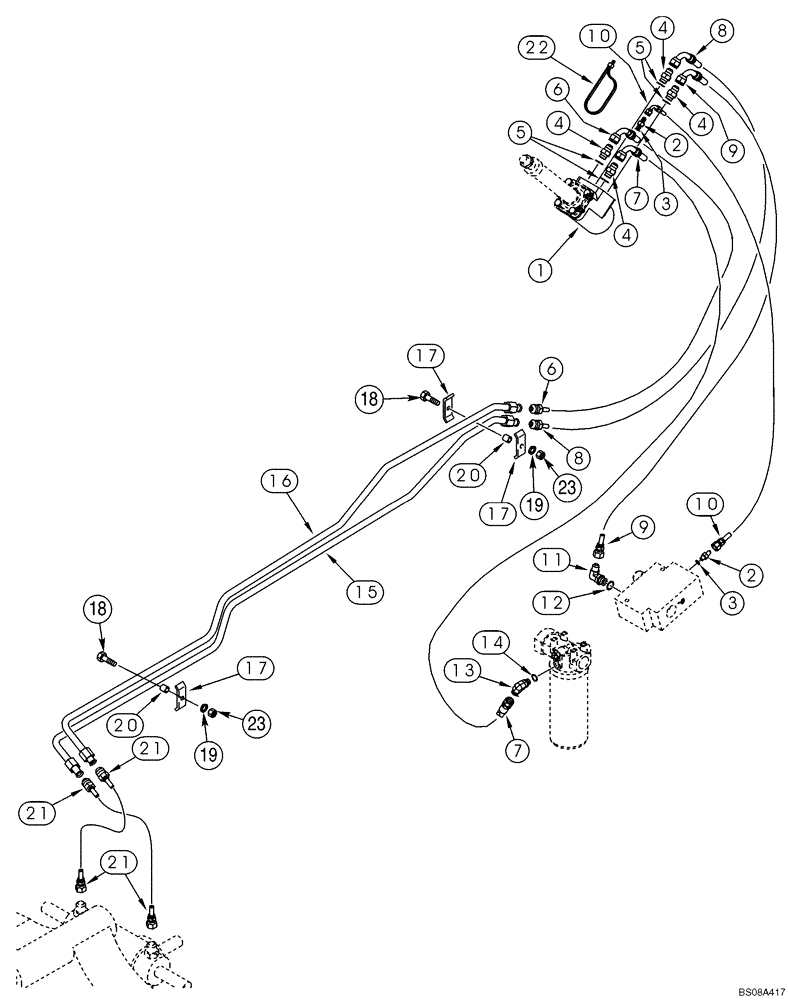

Запчасти Case 586G (05-02) - HYDRAULICS - STEERING (05) - STEERING

1

REF

INSTRUCTION

Pump Assy, Steering, See Figure 05-03

1шт.

2

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 3

2шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 5

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

338509A1

HOSE,9.53mm ID x 1350mm L

1350 mm (53-1/8 in), Steering

1шт.

7

338508A1

HOSE,9.53mm ID x 1900mm L

1900 mm (73-3/4 in), Serial Range: Pump-Tank

1шт.

8

338509A1

HOSE,9.53mm ID x 1350mm L

1350 mm (53-1/8 in), Steering

1шт.

9

338507A1

HOSE,9.53mm ID x 1350mm L

1350 mm (53-1/8 in), Pressure

1шт.

10

338506A1

HOSE,6.35mm ID x 1200mm L

1200 mm (47-1/4 in), Load Sense

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

87484601

HYD TUBE,.625" OD

Right Hand; Replaces 87710296

1шт.

16

87484606

HYD TUBE,.625" OD

Left Hand; Replaces 87710294

1шт.

17

D143723

SHIN

3-4шт.

18

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

Used With D146035

2-4шт.

19

892-11010

LOCK WASHER,M10

2-4шт.

20

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

10.31 x 16 x 15.50 mm lg; If Used

2шт.

21

144219A1

HOSE,9.53mm ID x 485mm L

485 mm (19-1/8 in)

2шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2-4шт.
