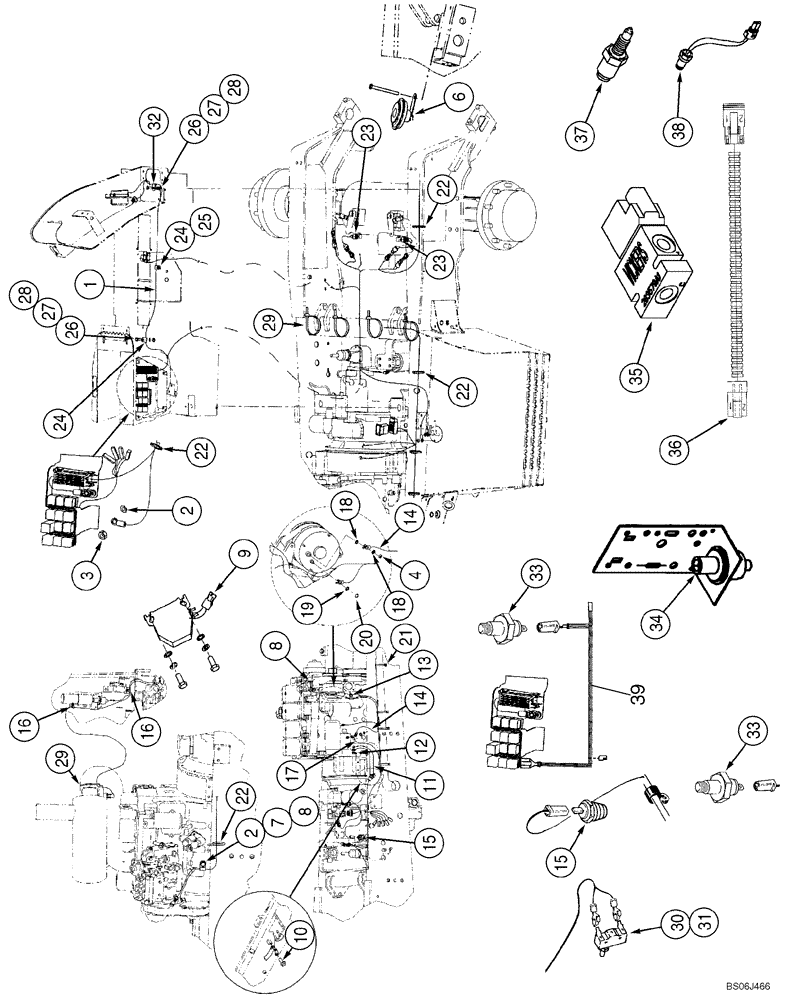

Запчасти Case 586G (04-07) - HARNESS - CHASSIS (04) - ELECTRICAL SYSTEMS

1

328854A5

HARNESS

Main Chassis, With 12 Relay Sockets; If Used

1шт.

1

370133A1

HARNESS

Main Chassis, With 13 Relay Sockets; If Used; With Packard Connector At Transmission Solenoids; No Longer Available, Order 87456955 Harness Kit

1шт.

1

87580196

WIRE HARNESS

Main Chassis; (9) L71879 Diodes; W/Deutsch Connectors At Transmission Solenoids; Replaces 87456951 (8) Diode Harness; Also Replaces 87517046 (9) Diode Harness.

1шт.

1

87456955

WIRE HARNESS

Kit; Main Chassis W/Jumpers; Incl. 87580196 Chassis Harness; 87450931 4WD Jumper (Packard/Deutsch), Attaches to 4WD Connection on Chassis Harness; 87456948 Fwd/Rev Jumper (1 Packard/2 Deutsch), Attaches to Trans. Cont Valve Sol. Connection on Chassis Harn

1шт.

1a

87450931

WIRE HARNESS

4WD Transmission Jumper Harness; 1 Packard / 1 Deutsch; Attaches to 4WD Connection On Main Chassis Harness; Not Illustrated

1шт.

1a

87456948

WIRE HARNESS

Fwd/Rev Transmission Jumper Harness; 1 Packard / 2 Deutsch; Attaches to Transmission Control Valve Solenoid Connection On Main Chassis Harness; Not Illustrated

1шт.

2

892-11008

LOCK WASHER,8mm ID

1шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

6

237582A1

HORN

Mount With Priority Valve Hardware

1шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

9

D139175

HARNESS

Backup Alarm

1шт.

10

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

11

D127018

STRAP

Mounts To Lower Outside Starter Mounting Bolt, See Figure 04-02

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

13

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

14

D143830

CABLE

Alternator

1шт.

15

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

16

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

2шт.

17

184188A1

HARNESS

Power, Attaches To 184277A1 Junction Block, See Figure 04-06

1шт.

18

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

19

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

20

824-1405

NUT,M5, Cl 5

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

23

D138955

SWITCH

Brake Pressure

2шт.

24

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

Place under floor plate

2шт.

25

D150633

SPACER,8.7mm ID x 12.7mm OD x 14mm W

1шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

27

892-11010

LOCK WASHER,M10

2шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

29

305342A1

STRAP,450mm L

450 mm (18 in), Nylon

5шт.

30

D148108

SWITCH

Brake Lamp

1шт.

31

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

2шт.

32

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

Place Under Floor Plate

1шт.

33

277016A1

PRESSURE SWITCH

Oil, M10

1шт.

34

A172116

VALVE

12V, 3 cc, Ether Start

1шт.

35

283579A1

SOLENOID VALVE

Differential Lock, Chassis Mounted, If Used

1шт.

36

333264A1

HARNESS

Pigtail, Differential Lock, If Used

1шт.

37

280450A1

PARK BRAKE SWITCH

Parking Brake

1шт.

38

192481A1

SENSOR

Oil Temperature, Rear Axle

1шт.

87516580

SERVICE KIT

Fuel Shutoff Solenoid; Includes Ref 39, Plus Instructions; Used On Models With 87456951 Main Chasssis Harness With 8 Diodes; If Used

1шт.

39

87515994

WIRE HARNESS

Fuel Shutoff Solenoid Cutout Wire; Includes (1) L71879 Diode; Wire Goes From Fuel Solenoid Relay to Oil Pressure Switch Behind Oil Fill Tube On Engine

1шт.
