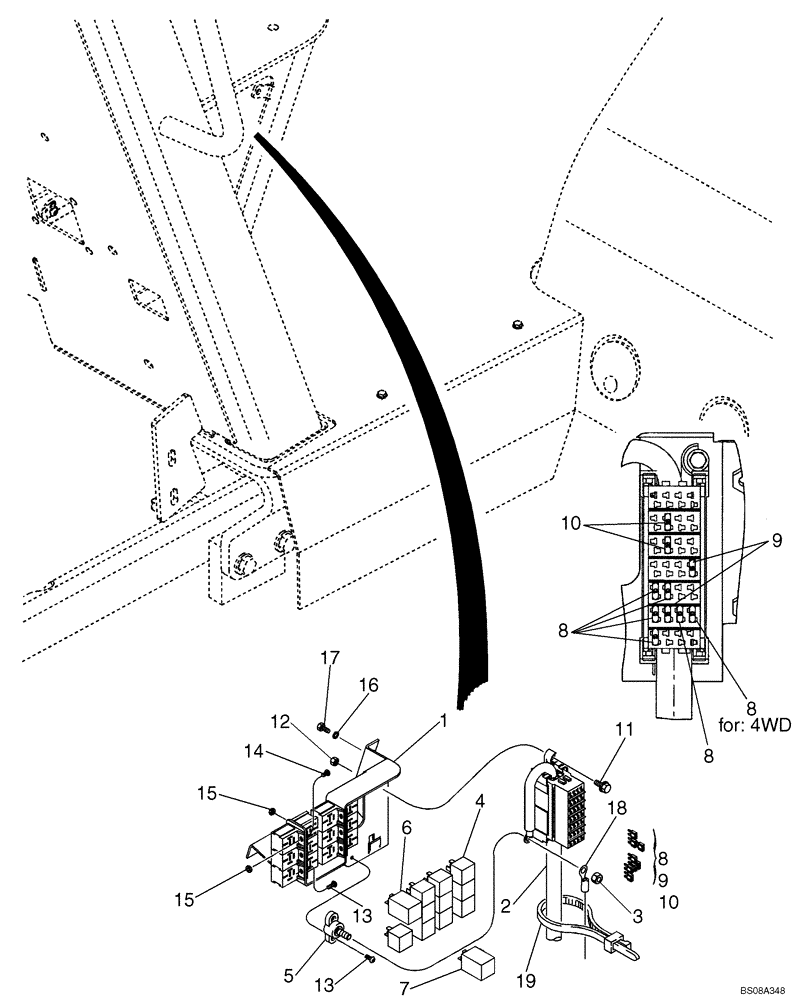

Запчасти Case 586G (04-06A) - FUSE AND FUSE BLOCK - RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

338704A2

BRACKET

Mounting, Relay And Fuse

1шт.

2

87700692

WIRE HARNESS

Main Chassis

1шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

87436836

RELAY,12V, 40 Amp

Mini; 12V, 40 amp

10шт.

5

184277A1

CONNECTION

1шт.

6

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

7

87578455

RELAY,12V, Turn Signal and Hazard

Turn Signal And Hazard

1шт.

8

121412A1

FUSE,10A, Mini, Red

Qty. 6 for 4WD

5-6шт.

9

121413A1

FUSE,15A, Mini, Blue

2шт.

10

121416A1

FUSE,30A, Mini, Green

2шт.

11

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

6шт.

14

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

7шт.

16

892-11008

LOCK WASHER,8mm ID

3шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

184188A1

HARNESS

Power, From Starter

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

L71879

DIODE ELEMENT,400V, 3A

5шт.
