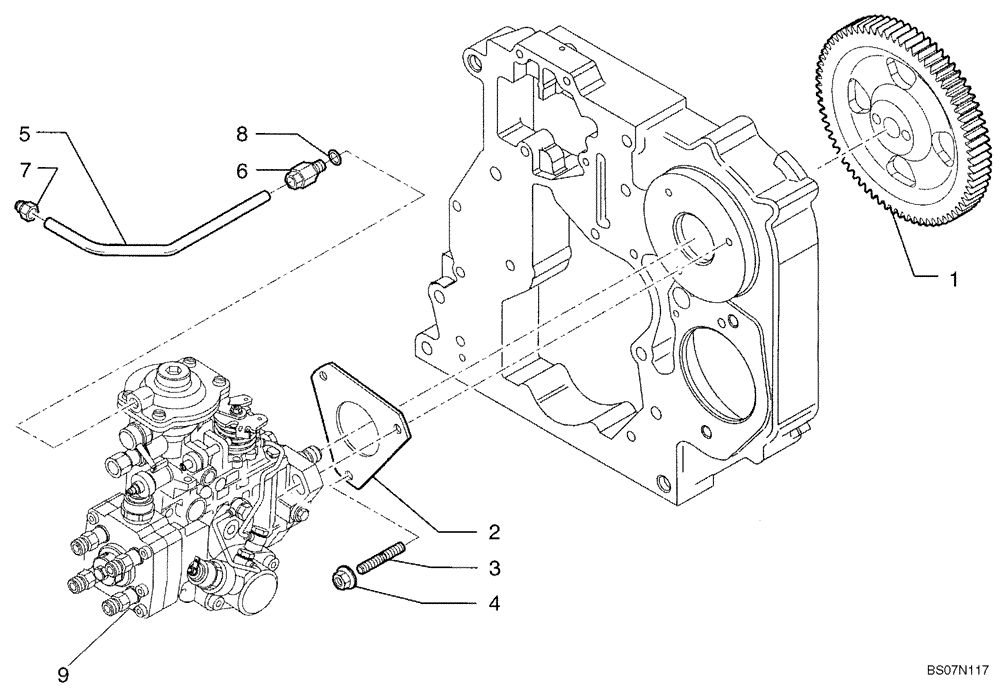

Запчасти Case 586G (03-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2854340

GEAR,52 T

1шт.

2

2852885

GASKET,1.2mm Thk

1шт.

3

2852294

STUD,M8 x 1.25 x 30

3шт.

4

4899003

FLANGE NUT,M8 x 1.25

3шт.

5

2852059

TUBE

1шт.

6

4893518

TUBE,M8 x 1 x 29.5 L

1шт.

7

4896770

TUBE NUT,M10 x 1

1шт.

8

2852057

SEALING WASHER,M8 x 12 x 1 Thk

SEAL WASHER

1шт.

9

REF

INSTRUCTION

INJECTION PUMP; See Figure 03-04

1шт.
