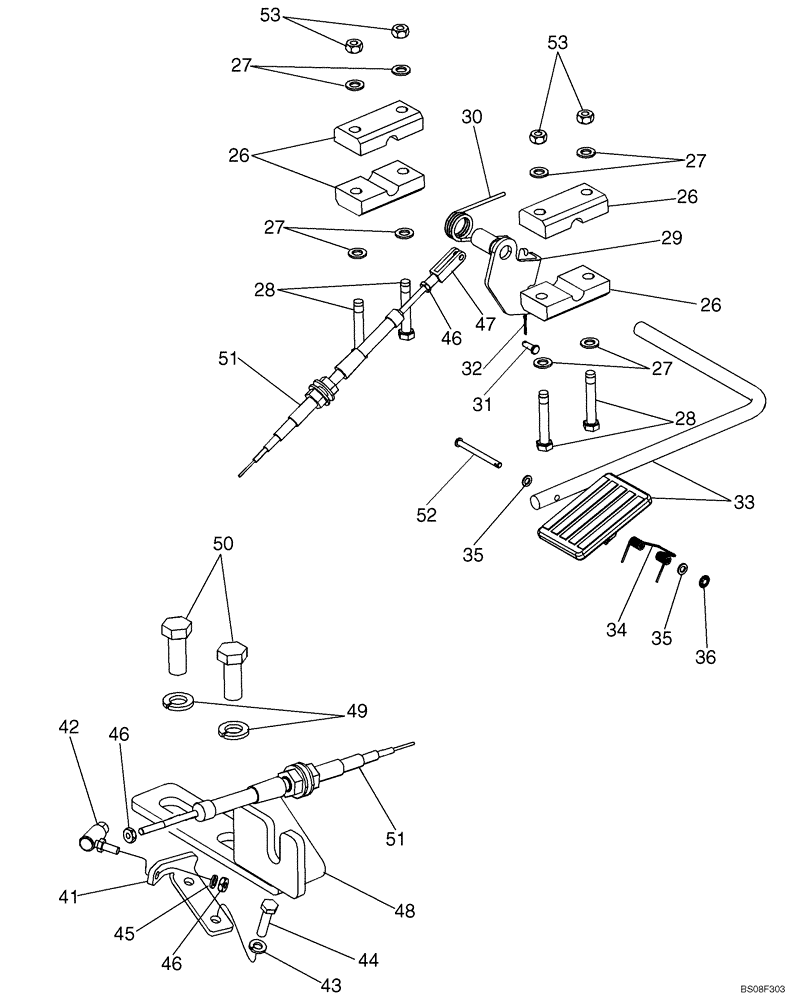

Запчасти Case 586G (03-02) - CONTROLS - THROTTLE (03) - FUEL SYSTEM

26

D124857

CLAMP

Cross Shaft

4шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

28

604-8050

BOLT,Hex, M8 x 50mm, Cl 8.8

4шт.

29

339886A1

LEVER ASSY.

Throttle

1шт.

30

123558A1

SPRING

1шт.

31

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

32

432-48

COTTER PIN,1/16" x 1/2"

1шт.

33

282242A1

PEDAL

1шт.

34

256776A1

SPRING

1шт.

35

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

36

103-1518

SNAP RING,#18, Ext

1шт.

41

87452823

BLOCK ASSY.

1шт.

42

87421807

JOINT ASSY.

1шт.

43

892-11006

LOCK WASHER,M6

2шт.

44

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

45

892-11005

LOCK WASHER,M5

1шт.

46

225-14210

NUT,#10-32

3шт.

47

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

48

87739250

BRACKET, SUPPORTING

1шт.

49

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

50

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

51

84123603

CABLE,1710mm L

Throttle

1шт.

52

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

53

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
