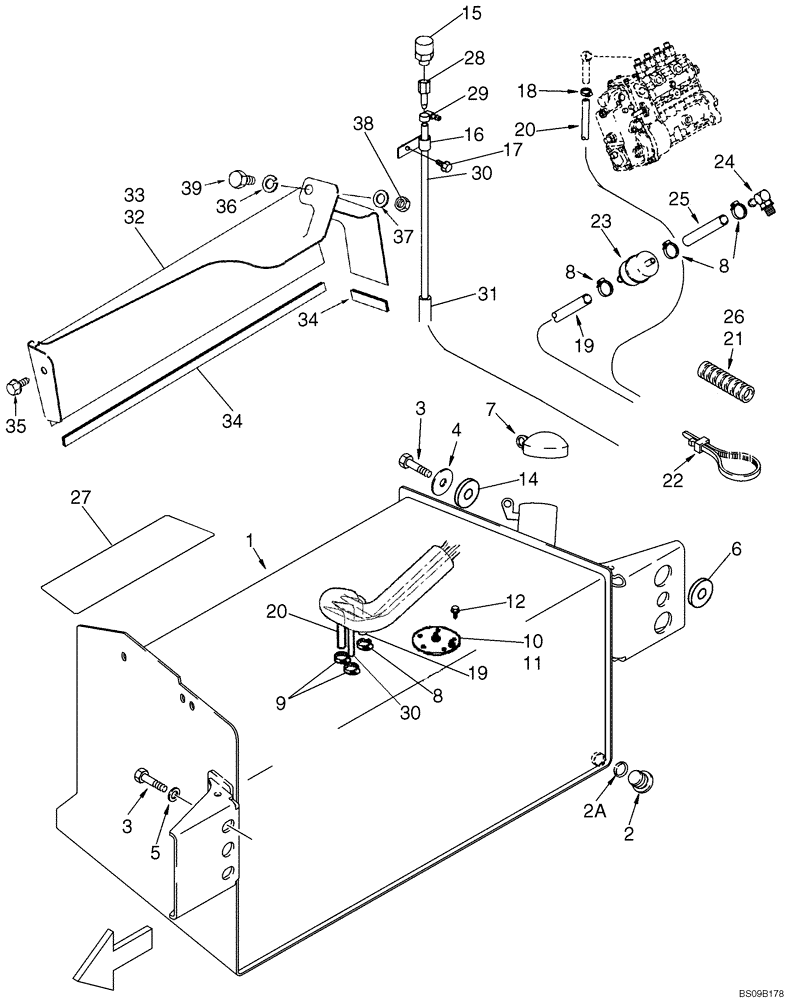

Запчасти Case 586G (03-01) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

87429259

TANK

Fuel, 31 gal, Incl. Right Hand Steps, Incl. 2

1шт.

2

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Includes Ref. 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

4шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

6

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

22 ID x 57 OD x 8.25 mm thk, Flat

2шт.

7

87335469

LOCKABLE FUEL CAP,Male, Lockable

1шт.

8

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

4шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

10

87408481

SENDER UNIT

Fuel Level

1шт.

11

188311A2

GASKET,2.38mm Thk

1шт.

12

87693492

SCREW,#10 - 32 x 5/8mm, Stainless

No. 10 NF x 5/8

5шт.

14

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk, Used W/Ref 6A

2шт.

15

130047A1

BREATHER ASSY.

Fuel

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

18

1348264C1

HOSE CLAMP

3/8 ID

1шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply

1шт.

20

87472225

FUEL HOSE,9.53 mm ID x 1745.00 mm, SAE R7

Fuel Return

1шт.

21

130048A1

PROTECTOR

203 mm (8 in)

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP 7"-8" lg.

4шт.

23

87733726

FUEL FILTER

In-Line

1шт.

24

87442270

FITTING

1/2 stem x NG-12

1шт.

25

87739247

HOSE,9.53mm ID x 375mm L, SAE 30R7

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

27

87679228

ANTI-SKID STRIP

Non-Slip, 737 mm x 217 mm

1шт.

28

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

1шт.

29

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

30

87362937

HOSE,6.35mm ID x 1080mm L, SAE 30R6

1/4 ID x 1080 mm; Cut Hose Both Ends; Fuel Vent

1шт.

31

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Hose Sleeve

1шт.

32

D132982

PADDLE,26.87mm ID x 400mm L

Not Illustrated

1шт.

33

87414560

90 ELBOW

Not Illustrated

2шт.

34

87498489

HOSE PROTECTION

325 mm; Not Illustrated

1шт.
