Запчасти Case 586G (09-36) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS

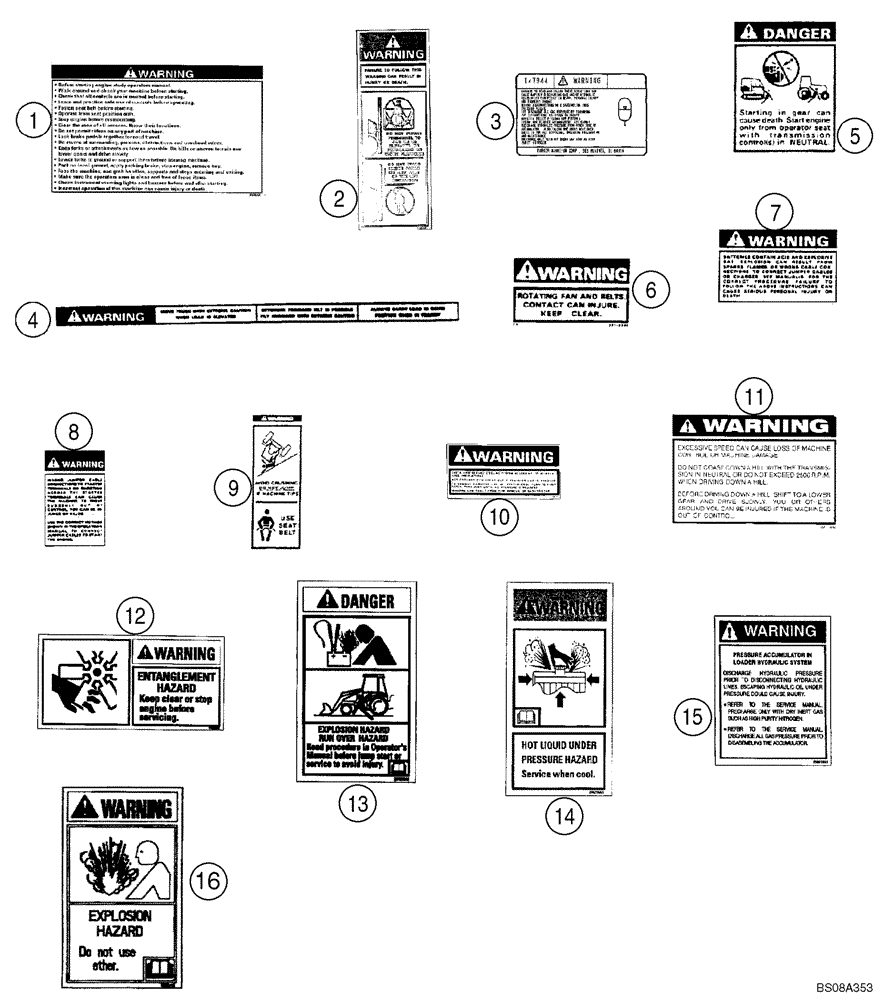

Схема запчастей Case 586G - (09-36) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS
11
14
9
6
2
16
10
7
13
1
4
15
8
5
12
3

Артикул

Название

Примечание

Количество

1

359942A1

DECAL

Before Starting

1шт.

2

359921A1

DECAL

Failure To Follow This Warning

3шт.

3

NSS

NOT SOLD SEPARAT

Decal, Warning, Hydraulic Accumulator

1шт.

4

359927A1

WARNING DECAL

Load Transit

1шт.

5

359933A1

DECAL

Starting in Gear

1шт.

6

359929A1

DECAL

Keep Clear

2шт.

7

359935A1

DECAL

Batter

1шт.

8

359925A1

DECAL

Jump Start

1шт.

9

359931A1

DECAL

Do Not Jump

1шт.

10

359923A1

DECAL

Cooling System

2шт.

11

359937A1

DECAL

Excessive Speed

1шт.

12

398580A1

WARNING DECAL

Entanglement Hazard

2шт.

13

398582A1

DANGER DECAL

Explosion Hazard, Battery

2шт.

14

398570A1

WARNING DECAL

Hot Liquid Under Pressure

2шт.

15

359940A1

DECAL

Accumulator

1шт.

16

8603094

WARNING DECAL

Do Not Use Ether

1шт.

Выбрано товаров: 16
