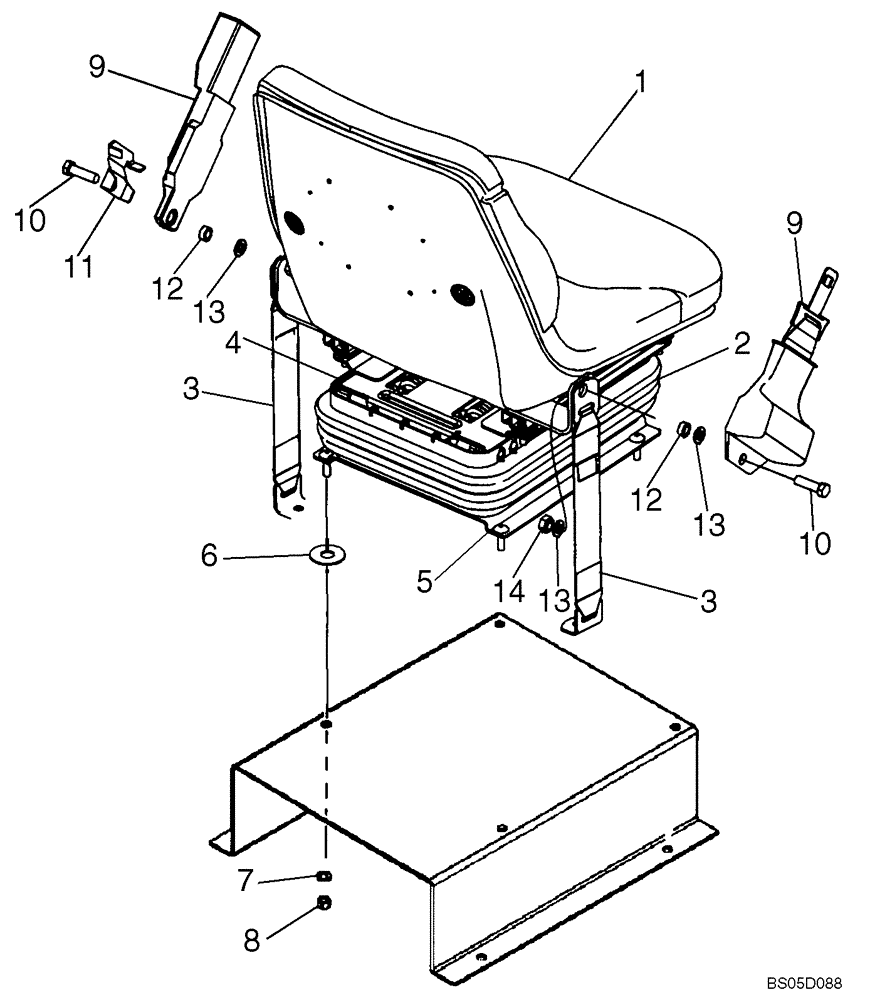

Запчасти Case 586G (09-24A) - SEAT ASSY, SUSPENSION - MOUNTING (SEARS) (09) - CHASSIS

87454301

SEAT ASSY.

Compact Suspension, Gray Vinyl, Sears Brand; Incl. Ref 1 - 5

1шт.

1

87338685

SEAT BACK

Seat Top, Gray Vinyl

1шт.

2

87338698

SEAT ACCESSORY

Suspension Assembly, Component Parts Not Serviced Separately

1шт.

3

87338687

SEAT ACCESSORY

Tether Belt, Two-Piece

1шт.

4

87338699

SEAT ACCESSORY

Slide Kit, Includes (1) Slide Handle, (1) Locking Slide, (1) Slide Latch Rod, (4) Lock Nuts, (6) Flat Washers, (4) 5/16 x 3/4 Bolts, (4) Washers

1шт.

5

87338700

SEAT ACCESSORY

Riser Kit, Includes (1) Adapter Plate Riser Weldment, (4) M8 x 12 Bolts

1шт.

6

495-81010

WASHER,.469" x 1 1/4" x .060"

Seat Front

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

87408889

SAFETY BELT ,50.80 mm W

If used

1шт.

9

87408888

SAFETY BELT ,76.20 mm W

If used

1шт.

10

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

11

87310149

BRACKET

Left-Hand Side

1шт.

12

D150391

SPACER

2шт.

13

496-81010

WASHER

15/32 x 1 x 7/64

2шт.

14

232-4617

LOCK NUT,7/16"-20, GC

2шт.
