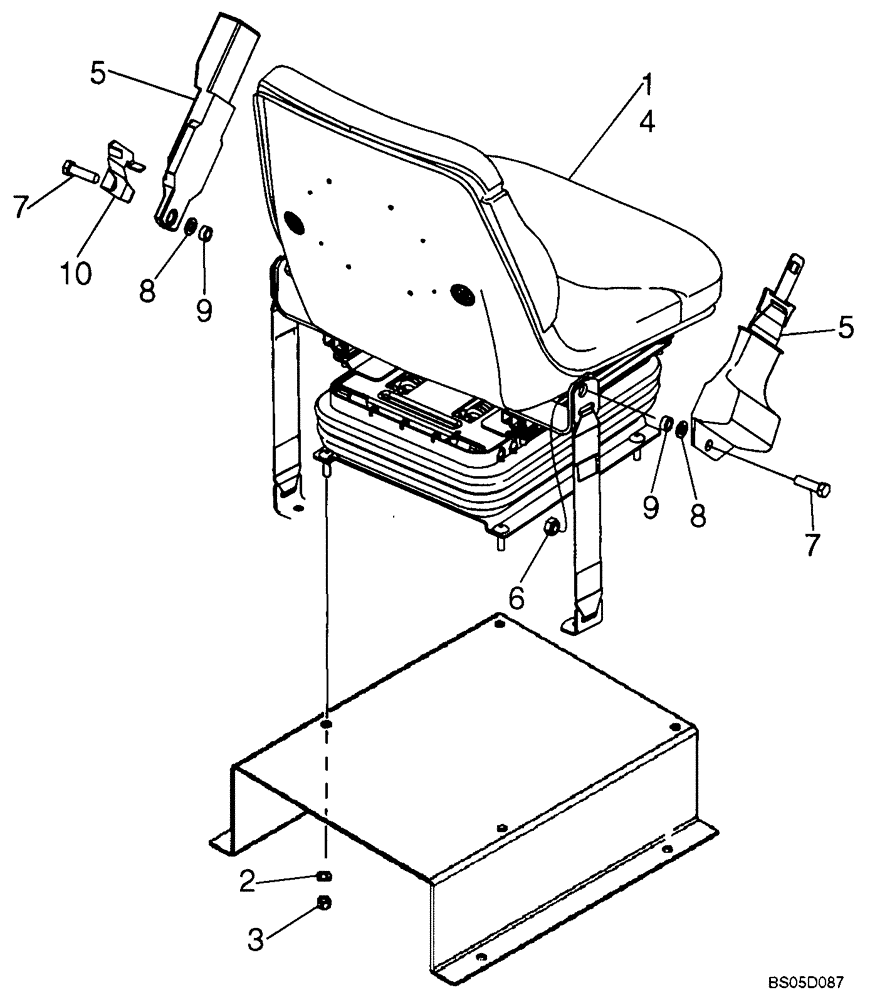

Запчасти Case 586G (09-24) - SEAT, DELUXE - MOUNTING (MILSCO) (09) - CHASSIS

1

323315A1

SEAT ASSY.

Deluxe, Suspension, Milsco Brand; See Figure 09-26

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

4

NSS

NOT SOLD SEPARAT

Shroud, Backrest, See Figure 09-26

1шт.

5

87408889

SAFETY BELT ,50.80 mm W

1шт.

5

87408888

SAFETY BELT ,76.20 mm W

1шт.

6

232-4617

LOCK NUT,7/16"-20, GC

2шт.

7

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

8

496-81010

WASHER

15/32 x 1 x 7/64

2шт.

9

D150391

SPACER

2шт.

10

D150392

BRACKET

Outer, If Used

1шт.
