Запчасти Case 586G (09-22) - BATTERY BOX - TANK, HYDRAULIC OIL (09) - CHASSIS

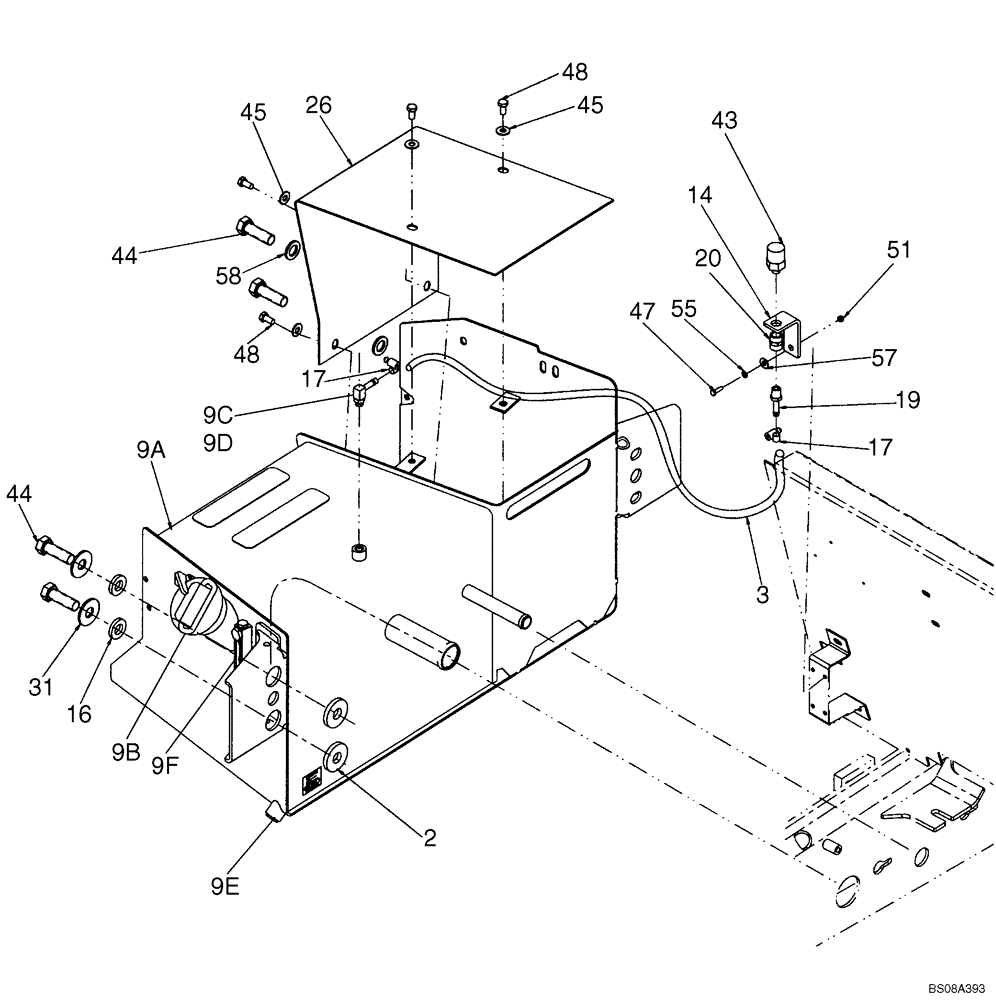

Схема запчастей Case 586G - (09-22) - BATTERY BOX - TANK, HYDRAULIC OIL (09) - CHASSIS
44
16
48
9c
9e
14
19
9d
20
47
17
57
17
26
43
55
44
2
45
9b
48
31
51
58
9a
9f
45
3

Артикул

Название

Примечание

Количество

2

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

22 ID x 57 OD x 8.25 mm thk, Flat

2шт.

3

87363421

HOSE, BULK,9.53mm ID x 912mm L

HOSE, METERS 912 mm (35-29/32 in), Vent

1шт.

9

87693551

RESERVOIR, HYDRAULIC,52.6L

Left Hand Side of Chassis, Incl. 9A - 9F, Plus (1) 87679232 Nonslip Pad or (2) D55216 Nonslip Pads, And 321-229 Hydraulic Fluid Decal

1шт.

9a

87693549

RESERVOIR, HYDRAULIC,52.6L

1шт.

9b

138595A1

FILLER CAP,Male, Lockable

1шт.

9c

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Incl. 9D

1шт.

9d

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9e

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Drain

1шт.

9f

226456A1

LEVEL GAUGE

Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings Used with Ref 22

1шт.

14

122603A1

SUPPORT

1шт.

16

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk.

2шт.

17

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

19

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

20

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

22

B17422

LOCTITE

No. 242, 50 ml, Not Illustrated

1шт.

26

231656A1

COVER

Battery

1шт.

31

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

43

361776A1

BREATHER,3/8"-18

1шт.

44

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Used with Ref 22

4шт.

45

495-21044

WASHER,3/8"

4шт.

47

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

48

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

51

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

55

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

57

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

58

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

Выбрано товаров: 26
