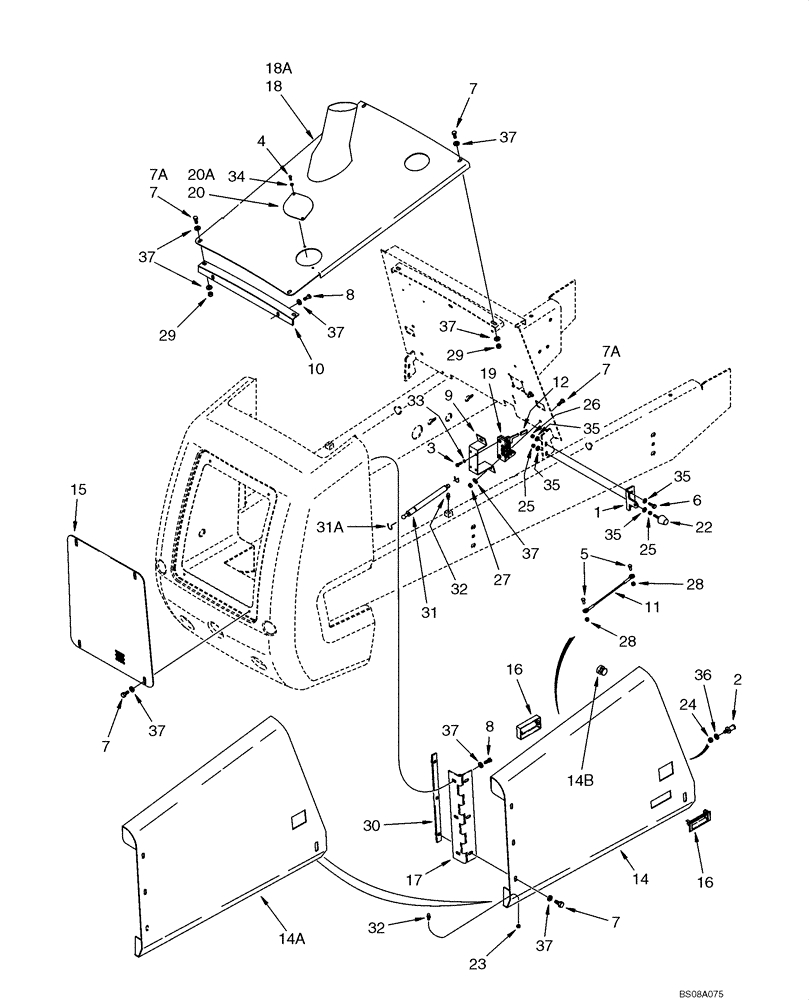

Запчасти Case 586G (09-21) - HOOD - PANELS AND GRILLE (09) - CHASSIS

1

339578A1

BAR

2шт.

2

328534A1

BOLT

Striker

2шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

12-18шт.

7a

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

8

806-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

8шт.

9

328309A1

BRACKET

Door Latch

2шт.

10

362399A1

BRACKET

Hood Support

1шт.

11

225059A1

CABLE,280mm L

Door

2шт.

12

60-6423T1

CAP

2шт.

13

353842A1

DOOR

Panel, Side, Left Hand, With Handle REF 16, Not Illustrated, If Used

1шт.

13a

353842A2

DOOR ASSY.

Panel, Side, Left Hand, Not Illustrated, If Used

1шт.

14

353843A1

DOOR

Panel, Side, Right Hand, With Handle REF 16, If Used

1шт.

14a

353843A2

DOOR ASSY.

Panel, Side, Right Hand, If Used

1шт.

14b

356283A1

GROMMET

2шт.

15

340969A1

GRILLE

1шт.

16

328850A1

DOOR HANDLE

Door, Side, Used With 353842A1, 353843A1

2шт.

17

339480A1

HINGE

Panel, Side

2шт.

18

87713286

FIXING PLATE

HOOD ASSY., Tan, If Used

1шт.

18a

87713286

FIXING PLATE

HOOD ASSY., Gray, If Used

1шт.

19

117714A1

LATCH

Door, Side, Right Hand

1шт.

20

189684A1

COVER

Radiator, Tan, If Used

1шт.

20a

409695A1

COVER

Radiator, Gray, If Used

1шт.

21

330278A1

LATCH

Door, Side, Left Hand, Not Illustrated

1шт.

22

346104A1

MOUNTING PARTS

Vibration

2шт.

23

230-4215

NUT,5/16"-18, GA

2шт.

24

425-107

NUT,7/16"-14, G5

2шт.

25

425-115

NUT,5/16"-24, G5

4шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

30

339918A1

PLATE

2шт.

31

339361A1

SPRING

Compression, Gas

2шт.

31a

F44883

CLIP,DIN 71805 - S10

Gas Spring

4шт.

32

1340345C1

BALL STUD

BALL PIN

4шт.

33

492-11025

LOCK WASHER,1/4"

4шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

36

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

37

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

30-34шт.
