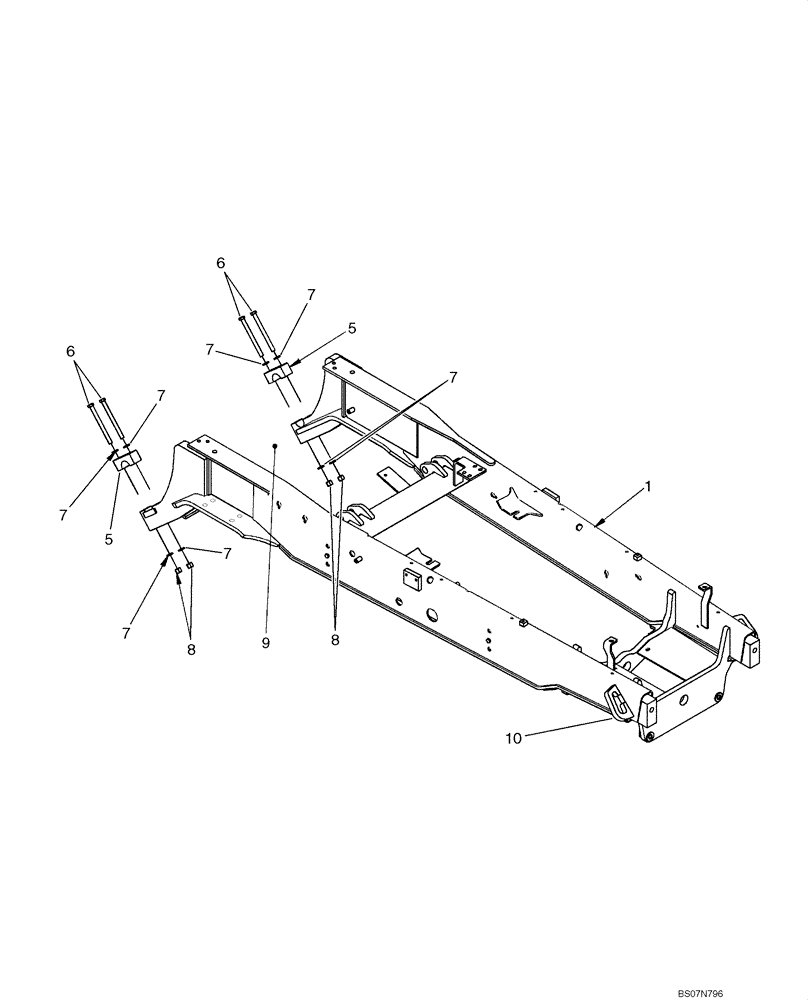

Запчасти Case 586G (09-20) - CHASSIS (09) - CHASSIS

1

87578859

CHASSIS

Forklift

1шт.

3

321-7040

DANGER DECAL

Not Illustrated, See Figure 09-34

1шт.

5

315920A1

BLOCK

Upper

2шт.

6

827-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

9

218-776

PLUG,7/8"-14, 37 Degree

For Models Without Mast To Cap Main Hydraulic Line Going To Mast

1шт.

10

87409166

SERVICE KIT

Tiedowns, Forklift, Includes (4) Tiedowns and Instructions

1шт.
