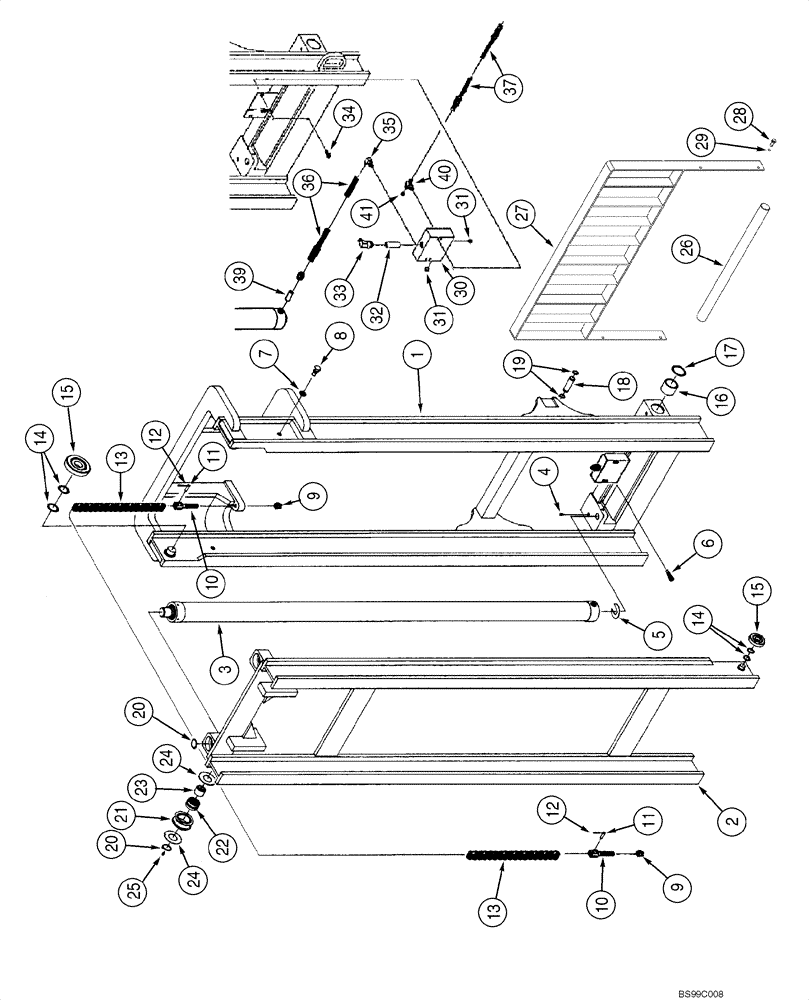

Запчасти Case 586G (09-12) - MAST - 8000 LB (09) - CHASSIS

324496A3

MAST ASSEMBLY

4,5 M (15 ft), Shaft, Incl. 1 - 25, 30 - 42, Also Incl. 09-13

1шт.

341189A1

RAIL ASSY.

Incl. 1 - 21, 30 - 42

1шт.

1

341192A1

RAIL

Outer

1шт.

2

341193A1

RAIL

Inner

1шт.

3

341194A1

CYLINDER ASSY.

Rail, See Figure 08-07B

2шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

339786A1

SHIM

0,76 mm (0,03 in)

1шт.

6

339777A1

BOLT

2шт.

7

492-11075

LOCK WASHER,3/4"

2шт.

8

339778A1

BOLT

2шт.

341190A1

CHAIN (CE)

Incl. 9 - 13

2шт.

9

231-24412

LOCK NUT,3/4"-16, GB

4шт.

10

339819A1

ANCHOR

Chain

4шт.

11

339820A1

PIN

4шт.

12

432-612

COTTER PIN,3/32" x 3/4"

8шт.

13

341191A1

CHAIN (AG)

Mounts Through Carriage Chain Anchor

2шт.

14

337606A1

SHIM

0,76 mm (0,03 in)

1шт.

15

337607A1

ROLLER

Load

4шт.

16

339787A1

BUSHING

2шт.

17

103-21300

SNAP RING,3.00", Int, #300

2шт.

18

339789A1

PIN

2шт.

19

103-11125

SNAP RING,#125, Ext

4шт.

20

100-11175

SNAP RING,#175, Ext

4шт.

21

339814A1

SHEAVE

Chain

2шт.

22

339816A1

BALL BEARING

2шт.

23

339817A1

RACE

2шт.

24

339818A1

THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk

4шт.

25

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

26

329457A1

SHAFT

Pivot,Mast

1шт.

27

329798A1

BACKREST,2133.6mm (84 inch)

2133,6 mm (84 in), Load

1шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

29

492-11062

BEARING WASHER,5/8"

4шт.

30

337776A1

BLOCK

For Attaching Hose(s) See Figure 08-03, See Olofsson dealer for service of the manifold valve on all masts.

1шт.

31

339834A1

PLUG

2шт.

32

352972A1

VALVE

1шт.

33

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 237-6012

1шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

Mounting

2шт.

35

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

Incl. 237-6002

2шт.

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

36

337777A1

HOSE

Right Hand

1шт.

37

337778A1

HOSE

Left Hand

1шт.

38

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 237-6010

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

352973A1

LIMITER, TRAVEL

LIMITER Right Hand Side

1шт.

40

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 237-6008

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

218-755

CAP,37 Degree, 3/4"-16

1шт.

42

218-756

CAP,37 Degree, 7/8"-14

1шт.
