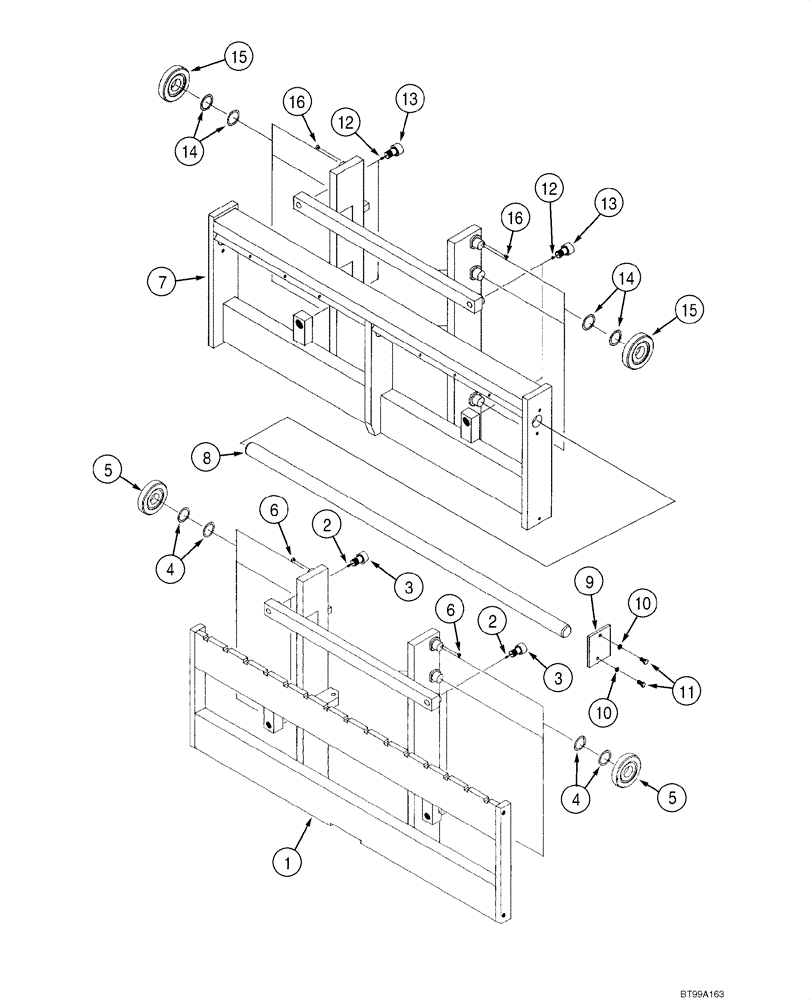

Запчасти Case 586G (09-11) - MAST, HOOK AND SHAFT FRAME - 8000 LB (09) - CHASSIS

.

356488A2

KIT

KIT, MAST ASSY 8K 15' 60" HOOK MAST, Incl 329464A3

1шт.

.

329464A3

MAST ASSEMBLY

4,5 M (15 ft), Hook, Incl. 1 - 6, Also Incl. Parts On 09-10

1шт.

.

329466A3

MAST ASSEMBLY

4,5 M (15 ft), Shaft, Incl. 7 - 16, Also Incl. Parts On 09-10

1шт.

.

1524 mm (60 in) HOOK FRAME

1шт.

.

339891A1

CARRIER

Hook, Incl. 1 - 6

1шт.

1

339888A1

CARRIER

1524 mm (60 in), Hook

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

3

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

4

337606A1

SHIM

0,76 mm (0,03 in)

1шт.

5

337607A1

ROLLER

Load

4шт.

6

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

2шт.

.

1524 mm (60in) SHAFT FRAME

1шт.

.

339884A1

CARRIER

Shaft, Incl. 7 - 16

1шт.

7

339881A1

CARRIER

1524 mm (60 in), Shaft

1шт.

8

339882A1

SHAFT

1шт.

9

337651A1

CAP

Shaft

2шт.

10

492-11062

BEARING WASHER,5/8"

4шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

12

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

13

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

14

337606A1

SHIM

0,76 mm (0,03 in)

1шт.

15

337607A1

ROLLER

Load

4шт.

16

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

2шт.
