Запчасти Case 586G (09-09) - MAST, HOOK AND SHAFT FRAME - 6000 LB (09) - CHASSIS

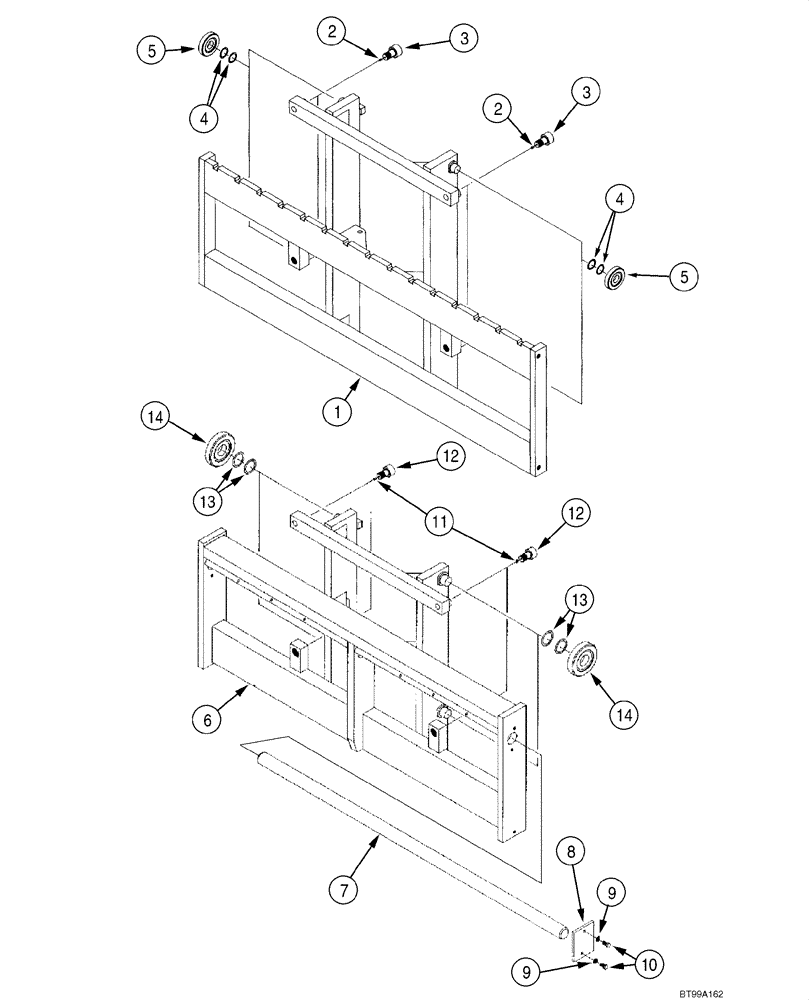

Схема запчастей Case 586G - (09-09) - MAST, HOOK AND SHAFT FRAME - 6000 LB (09) - CHASSIS
7
4
13
1
13
6
12
9
12
14
4
11
14
3
9
2
8
10
3
2
5
5

Артикул

Название

Примечание

Количество

.

356485A2

KIT

KIT, MAST/ASSY 6K 22ft 60" HOOK MAST, Incl 324495A3

1шт.

.

324495A3

MAST ASSEMBLY

6,6 M (22 ft), Hook, Incl. 1 - 5, Also Incl. Parts On 09-08

1шт.

.

348366A3

MAST ASSEMBLY

4,8 M (16 ft), Hook, Incl. 1 - 5, Also Incl. 09-05, 09-06

1шт.

.

348368A3

MAST ASSEMBLY

6,6 M (22 ft), Freelift, 6000 lb Only, Hook, Incl. 1 - 5, Also Incl. 09-03, 09-04

1шт.

.

1524 mm (60 in) HOOK FRAME

1шт.

.

341182A1

HOUSING ASSY.

Hook, Incl. 1 - 5

1шт.

1

341181A1

CARRIER

1524 mm (60 in), Hook

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

3

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

4

339897A1

SHIM

0,76 mm (0,03 in)

1шт.

5

339898A1

ROLLER

Load

4шт.

.

356486A2

KIT

KIT, MAST ASSY 6K 22' 60" SHAFT MAST, Incl 329463A3

1шт.

.

329463A3

MAST ASSEMBLY

6,6 M (22 ft), Shaft, Incl. 6 - 14, Also Incl. Parts On 09-08

1шт.

.

349444A2

KIT

KIT, MAST FREELIFT 16' 60" SHAFT 6K, INCL 348367A3

1шт.

.

348367A3

MAST ASSEMBLY

4,8 M (16 ft), Shaft, Incl. 6 - 14, Also Incl. Parts On 09-05

1шт.

.

329739A3

MAST ASSEMBLY

6,6 M (22 ft), Freelift, 6000 lb Only, Shaft, Incl. 6 - 14, Also Incl. 09-04

1шт.

.

1524 mm (60in) SHAFT FRAME

1шт.

.

339903A1

HOUSING ASSY.

Shaft, Incl. 6 - 14

1шт.

6

339902A1

CARRIER

1524 mm (60 in), Shaft

1шт.

7

339895A1

SHAFT

1шт.

8

339896A1

CAP

Shaft

2шт.

9

492-11062

BEARING WASHER,5/8"

4шт.

10

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

12

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

13

339897A1

SHIM

0,76 mm (0,03 in)

1шт.

14

339898A1

ROLLER

Load

4шт.

Выбрано товаров: 27
