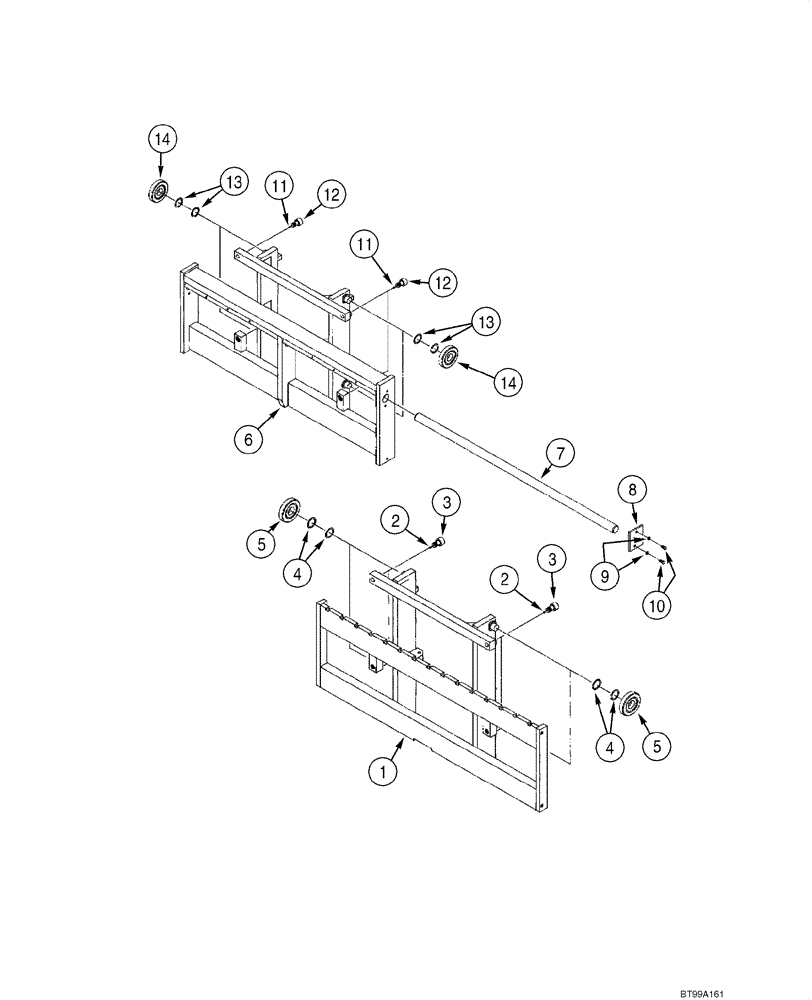

Запчасти Case 586G (09-07) - MAST, HOOK AND SHAFT FRAME - 6000 LB, 4,5 M (15 FT) (09) - CHASSIS

.

356483A2

KIT

KIT, MAST ASSY 6K 15' 60" HOOK MAST, Incl 324494A3

1шт.

.

324494A3

MAST ASSEMBLY

4,5 M (15 ft), Hook, Incl. 1 - 5, Also Incl. Parts On 09-02

1шт.

.

356484A2

KIT

KIT, MAST ASSY 6K 15' 60" SHAFT MAST, Incl 329462A3

1шт.

.

329462A3

MAST ASSEMBLY

4,5 M (15 ft), Incl. Ref 6 - 14, Also Incl. Parts On 09-02

1шт.

.

1524 mm (60 in) HOOK FRAME

1шт.

.

339901A1

HOUSING ASSY.

Hook, Incl. 1 - 5

1шт.

1

339900A1

CARRIER

1524 mm (60 in), Hook

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

3

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

4

339897A1

SHIM

0,76 mm (0,03 in)

1шт.

5

339898A1

ROLLER

Load

4шт.

.

1524 mm (60in) SHAFT FRAME

1шт.

.

339899A1

HOUSING ASSY.

Shaft, Incl. 6 - 14

1шт.

6

339894A1

CARRIER

1524 mm (60 in), Shaft

1шт.

7

339895A1

SHAFT

1шт.

8

339896A1

CAP

Shaft

2шт.

9

492-11062

BEARING WASHER,5/8"

4шт.

10

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

12

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

13

339897A1

SHIM

0,76 mm (0,03 in)

1шт.

14

339898A1

ROLLER

Load

4шт.
