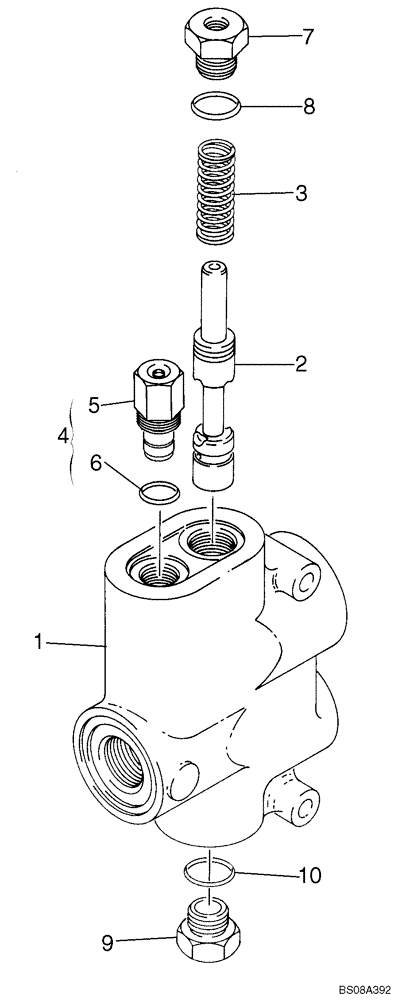

Запчасти Case 586G (08-21) - VALVE ASSY - FLOW CONTROL (08) - HYDRAULICS

87548326

HYDRAULIC VALVE

Flow Control; 121.4 mm (4-25/32 in) x 187.8 (7-13/32); Incl. Ref 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

D82777

SPRING

1шт.

4

87549581

VALVE, PRESSURE RELI

EF Flow Control Relief Valve Cartridge; Component Parts Not Serviced Separately; Incl. Ref 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

S114009

PLUG

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
