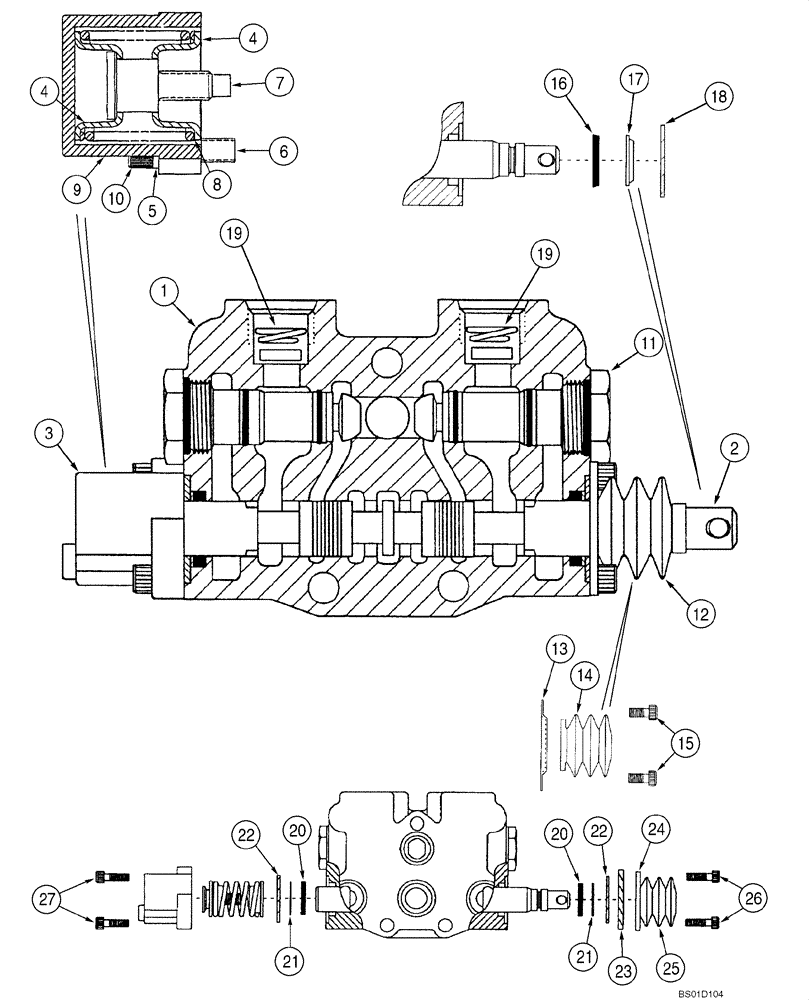

Запчасти Case 586G (08-20) - VALVE SECTION - SIDE SHIFT AND AUXILIARY (08) - HYDRAULICS

Side Shift

1шт.

Auxiliary

1шт.

360521A1

HYD VALVE SECTION

Side Shift, With Work Port Restrictors, Ref 19, Incl. 1 - 27, If Used

1шт.

375759A1

HYD VALVE SECTION

Auxiliary, Without Work Port Restrictor, Ref 19, Incl. 1 - 18, 20 - 27, If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

S300253

SET OF PARTS

Spool Positioner, Incl. 4 - 10

1шт.

4

H267591

SPRING SEAT

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

1шт.

7

N14593

STEP BOLT

1шт.

8

D87306

SPRING

1шт.

9

S300258

CAP

1шт.

10

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

2шт.

11

L100937

PLUG

Load Check

2шт.

12

348741A1

KIT

Boot, Incl. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Retainer

1шт.

14

NSS

NOT SOLD SEPARAT

Boot

1шт.

15

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

348738A1

SPOOL

Lip Seal, Spool, Incl. 16 - 18, If Used

2шт.

16

NSS

NOT SOLD SEPARAT

Seal, Lip Seal

2шт.

17

NSS

NOT SOLD SEPARAT

Wiper

2шт.

18

NSS

NOT SOLD SEPARAT

Retainer, Seal

2шт.

19

360591A1

RESTRICTOR

2шт.

352796A1

PACKAGE

O-Ring, Spool, Retrofit, Incl. 20 - 27

1шт.

20

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

2шт.

21

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

22

D88730

WASHER,0.77" ID x 1.43" OD

2шт.

23

N8194

LARGE PLATE

PLATE, LARGE

1шт.

24

357163A1

RETAINER

1шт.

25

357164A1

BOOT

1шт.

26

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

27

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.
