Запчасти Case 586G (08-18) - VALVE SECTION - FORKLIFT LIFT (08) - HYDRAULICS

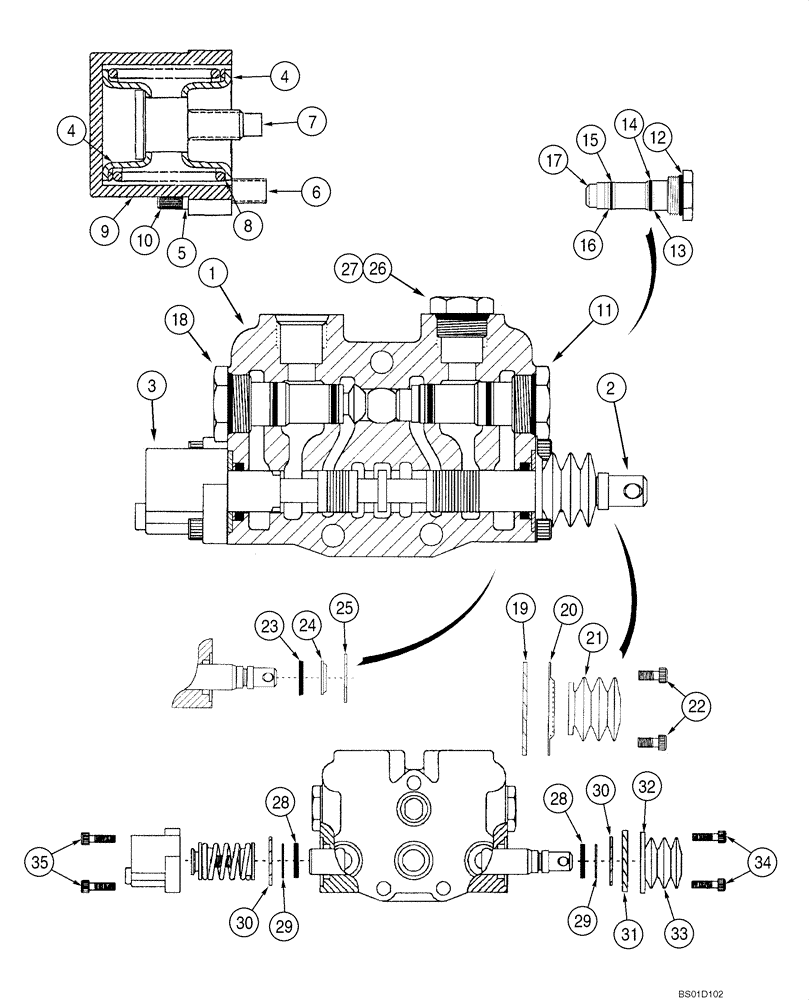

Схема запчастей Case 586G - (08-18) - VALVE SECTION - FORKLIFT LIFT (08) - HYDRAULICS
15
24
32
22
4
12
29
16
7
18
34
31
30
29
3
25
19
20
2
4
23
28
26
6
5
30
10
8
27
1
17
11
14
33
35
21
28
9
13

Артикул

Название

Примечание

Количество

360520A1

HYD VALVE SECTION

Lift, Incl. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

S300253

SET OF PARTS

Spool Positioner, Incl. 4 - 10

1шт.

4

H267591

SPRING SEAT

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

1шт.

7

N14593

STEP BOLT

1шт.

8

D87306

SPRING

1шт.

9

S300258

CAP

1шт.

10

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

2шт.

348732A1

PLUG

3-Way Conversion, Incl. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

Plug

1шт.

N8883

SEAL KIT

Seal, Incl. 12 - 17

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

16

D88725

BACK-UP RING

2шт.

17

NSS

NOT SOLD SEPARAT

Plug, Inner

1шт.

18

L100937

PLUG

Load Check

1шт.

348733A1

BOOT

Incl. N8194, 348741A1

1шт.

19

N8194

LARGE PLATE

PLATE, LARGE Seal

1шт.

348741A1

KIT

Boot, Incl. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Retainer

1шт.

21

NSS

NOT SOLD SEPARAT

Boot

1шт.

22

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

348738A1

SPOOL

Lip Seal, Spool, Incl. 23 - 25, If Used

2шт.

23

NSS

NOT SOLD SEPARAT

Seal, Lip Seal

2шт.

24

NSS

NOT SOLD SEPARAT

Wiper

2шт.

25

NSS

NOT SOLD SEPARAT

Retainer, Seal

2шт.

26

86512512

PLUG,7/8" - 14 ORB

Incl. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

352796A1

PACKAGE

O-Ring, Spool, Retrofit, Incl. 28 - 35

1шт.

28

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

2шт.

29

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

30

D88730

WASHER,0.77" ID x 1.43" OD

2шт.

31

N8194

LARGE PLATE

PLATE, LARGE

1шт.

32

357163A1

RETAINER

1шт.

33

357164A1

BOOT

1шт.

34

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

2шт.

35

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.

Выбрано товаров: 42
