Запчасти Case 586G (08-14) - FILTER ASSY, OIL (08) - HYDRAULICS

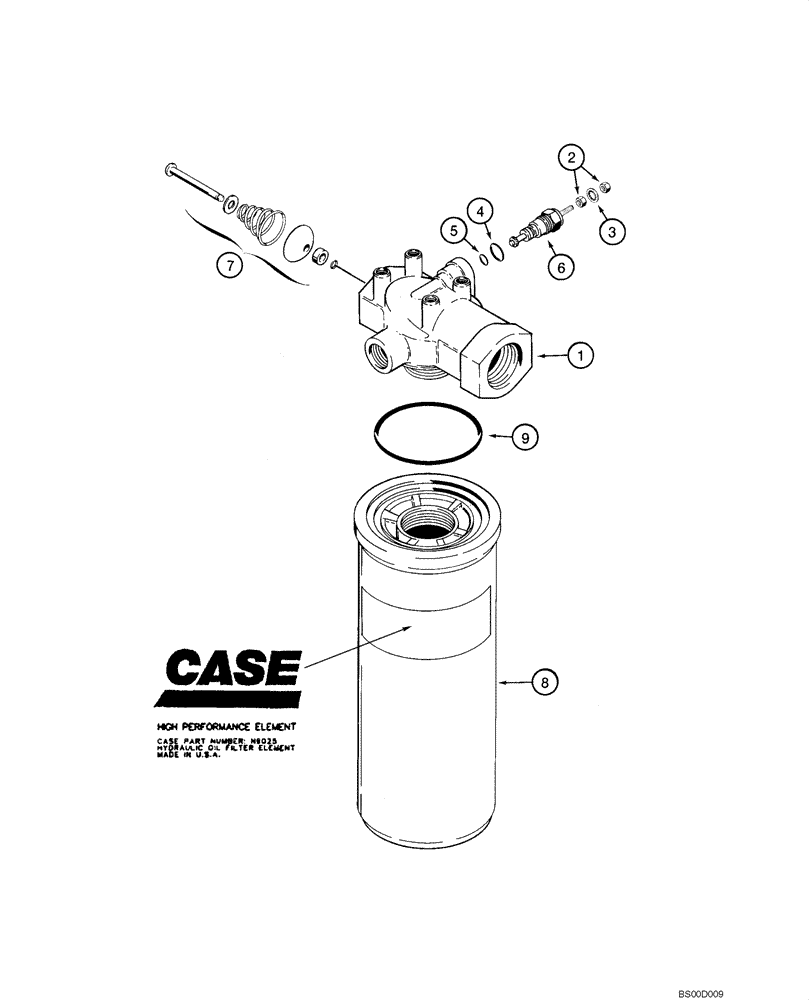

Схема запчастей Case 586G - (08-14) - FILTER ASSY, OIL (08) - HYDRAULICS
2
7
1
6
3
5
8
4
9

Артикул

Название

Примечание

Количество

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil, Incl. 1 - 9; Replaces 87440045 Used In This Application

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

N6755

PRESSURE SWITCH

Restriction, Electric, Incl. 2 - 6

1шт.

N6941

KIT

Restriction Indicator Repair, Incl. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Inner

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator, Restriction, Electric

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

N9025

HYDRAULIC OIL FILTER

Filter, Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Выбрано товаров: 13
