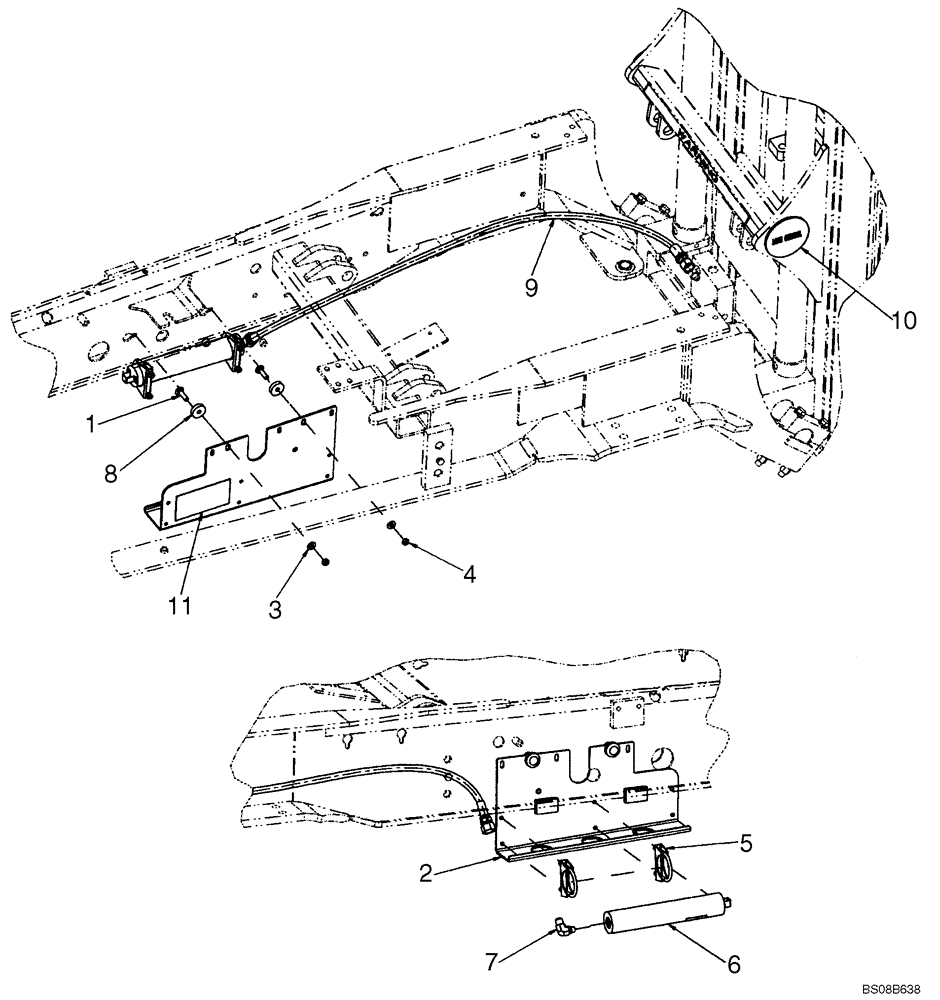

Запчасти Case 586G (08-12) - HYDRAULICS - LOAD CONTROL (08) - HYDRAULICS

1

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

2

86993690

MOUNTING PLATE

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

A13240

CLAMP,2-5/8" ID

2шт.

6

448285A1

ACCUMULATOR

See Figure 08-13

1шт.

7

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl. O-Ring 237-6008

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

9

358187A1

AIR HOSE,12.70 mm ID x 1675.00 mm

See 87333934 Kit, Figure 08-03

1шт.

10

356500A1

DECAL

2шт.

11

384260A1

WARNING DECAL,168mm x 88mm H

1шт.
