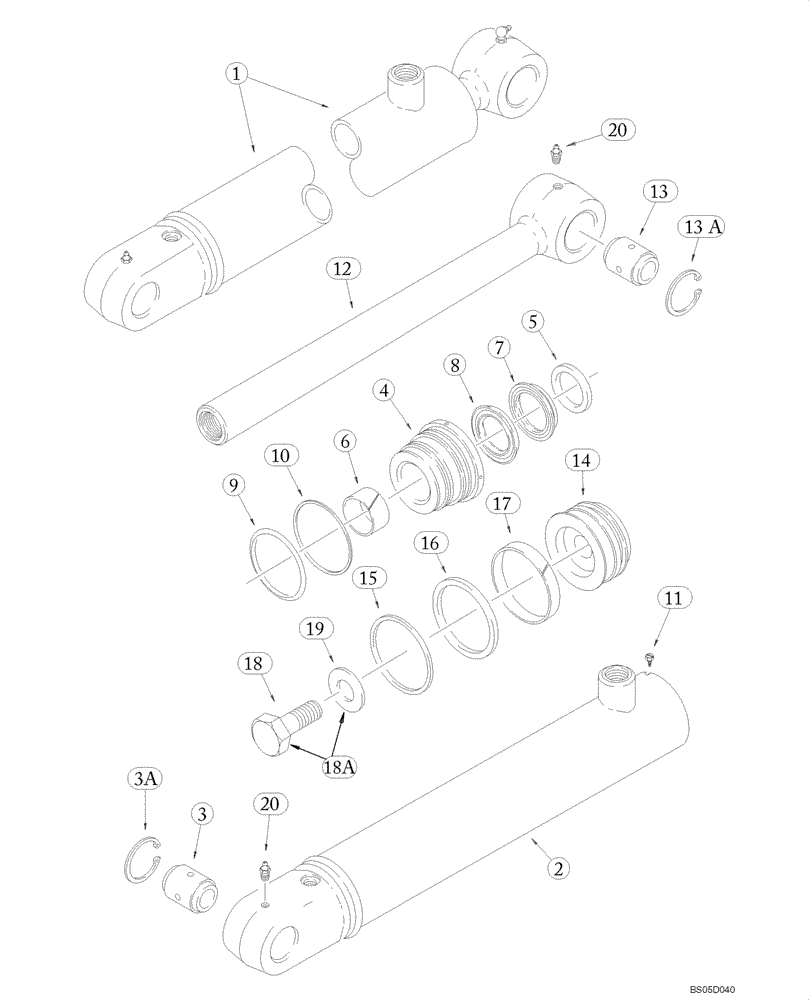

Запчасти Case 586G (08-05) - CYLINDER ASSY - FORKLIFT TILT (08) - HYDRAULICS

1

318877A1

CYLINDER,Double Acting, 38.1mm Rod, 560mm Stroke

76 ID x 560 mm strk, Forklift Tilt, Incl. 2 - 20

2шт.

1

318877A1R

REMAN-HYD CYLINDER

586G, 588G, Both SERIES 3 FORKLIFT TIER 3 (NA), 76 ID x 560 mm strk, Forklift Tilt

2шт.

1

318877A1C

CORE-HYD CYLINDER

Return Number

2шт.

2

318878A1

TUBE,80.72mm Bore Dia

Incl. 3, 3A

1шт.

3

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

3a

103-21200

SNAP RING,2", Int, #200

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. 4 - 10

1шт.

4

297280A1

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 7, 8, NSS, Order 1543256C1

1шт.

7

1542997C1

SEALING RING

Rod, NSS, Order 1543256C1

1шт.

8

NSS

NOT SOLD SEPARAT

1542996C1 Buffer Seal Not Serviced Separately, Order 1543256C1

1шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Incl 5 - 10, 15 - 17

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

12

318882A1

ROD ASSY.

Incl. 13, 13A

1шт.

13

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

1шт.

13a

103-21200

SNAP RING,2", Int, #200

2шт.

14

G108518

PISTON

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

If Used

1шт.

18a

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

Bolt And Washer Assy; If Used In Place Of Ref 18 And !9

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

If Used

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.
