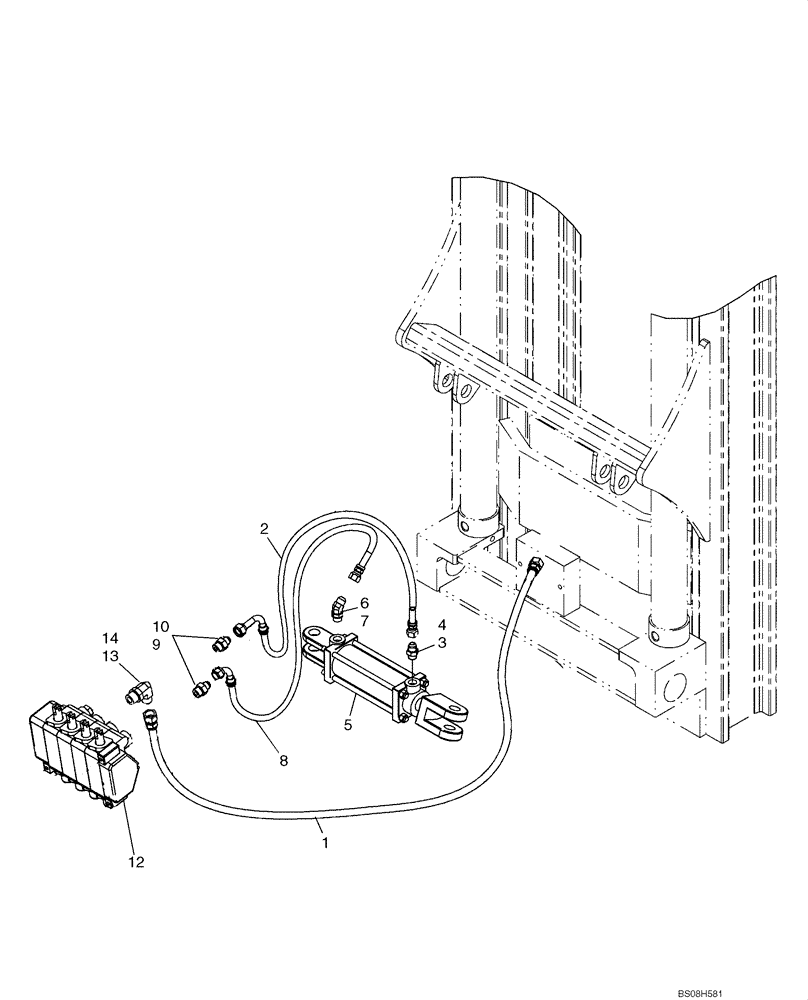

Запчасти Case 586G (08-03) - HYDRAULICS - SIDE SHIFT (08) - HYDRAULICS

1

336653A1

HOSE,12.7mm ID x 900mm L

900 mm (35-7/16 in), Control Valve to Manifold, For Attaching Parts, See Figure 09-02 - 09-17

1шт.

2

347912A1

HOSE,9.53mm ID x 500mm L

500 mm (19-11/16 in); Valve To Shift Cylinder

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

327149A1

CYLINDER,Double Acting, 31.75mm Rod, 152.4mm Stroke

63 ID x 152 mm, Side Shift, See Figure 08-06

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

336547A1

HOSE,9.53mm ID x 475mm L

475 mm (18-3/4 in), Serial Range: Valve-Cylinder

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

11

356883A1

VALVE, CONTROL

3 Spool, Forklift Control, See Figure 08-15: Not Illustrated

1шт.

12

356884A1

VALVE, CONTROL

Four Spool, Forklift Control, See Figure 08-16

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

87333934

REPAIR KIT

Hose, Includes Ref 1, Also Includes 338510A1, (Ref 1, Figure 08-04); 338511A2 (Ref 22, Figure 08-04); and 358187A1 (Ref 9, Figure 08-12)

1шт.
