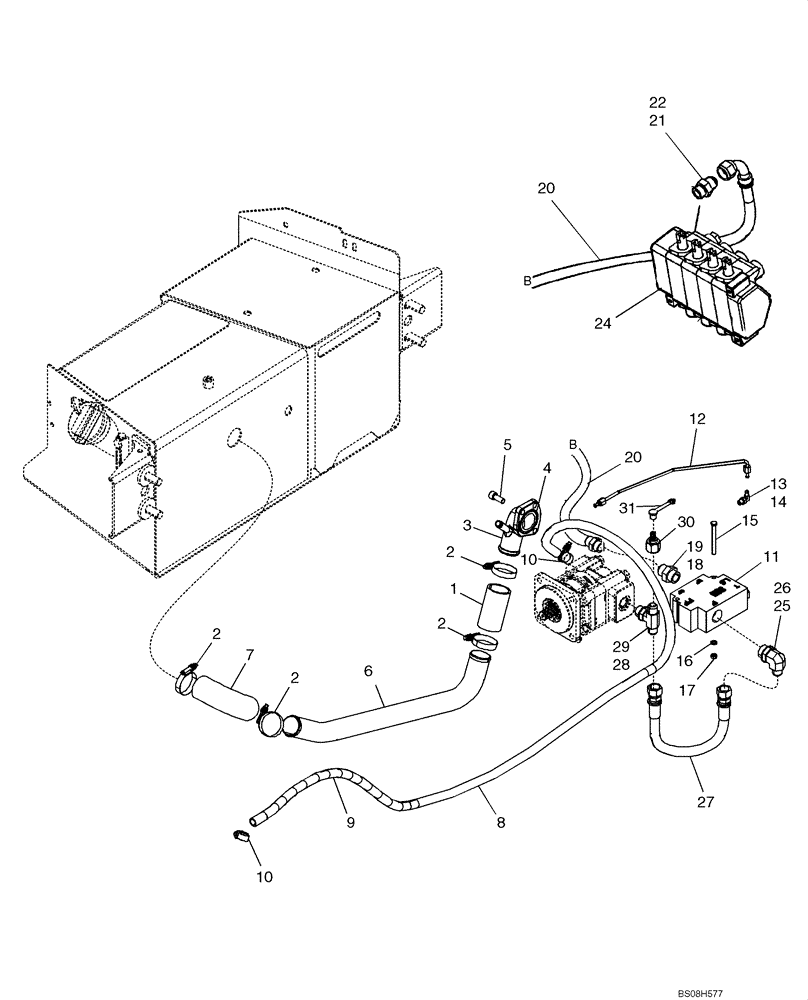

Запчасти Case 586G (08-02) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS

1

87306307

HOSE,50.80 mm ID x 105 mm

Suction

1шт.

2

259044A1

CLAMP

4шт.

3

87434257

FLANGE ASSY

1шт.

4

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

5

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

6

87703686

HYD TUBE

Suction

1шт.

7

87306272

HYDRAULIC HOSE,50.80 mm ID x 102.00 mm

1шт.

8

87741914

HOSE,15.88mm ID x 1920mm L, SAE 100R16

Cooler to Pump

1шт.

9

D132982

PADDLE,26.87mm ID x 400mm L

Hose Guard

2шт.

10

328186A1

HOSE CLAMP,400mm L

2шт.

11

87548326

HYDRAULIC VALVE

Flow Control/Priority; See Figure 08-21

1шт.

12

87748405

HYD TUBE

Tank

1шт.

13

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. 14

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 19

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

347911A1

HOSE,19.05mm ID x 1250mm L

1250 mm (49-1/4 in)

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

356883A1

VALVE, CONTROL

3 Spool, Forklift Control, See Figure 08-15

1шт.

24

356884A1

VALVE, CONTROL

Four Spool, Forklift Control, See Figure 08-16, Not Illustrated

1шт.

25

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 26

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

87741915

HOSE ASSY.

470 mm (18-1/2), Serial Range: Pump-Valve

1шт.

28

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

31

H434163

DUST CAP

1шт.

32

87677681

HYDRAULIC PUMP

585G and 586G Forklift Only, See Figure 08-11

1шт.

33

87677683

HYDRAULIC PUMP

588G Forklift Only, See Figure 08-11A

1шт.

34

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

35

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.
