Запчасти Case 586G (06-29) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN

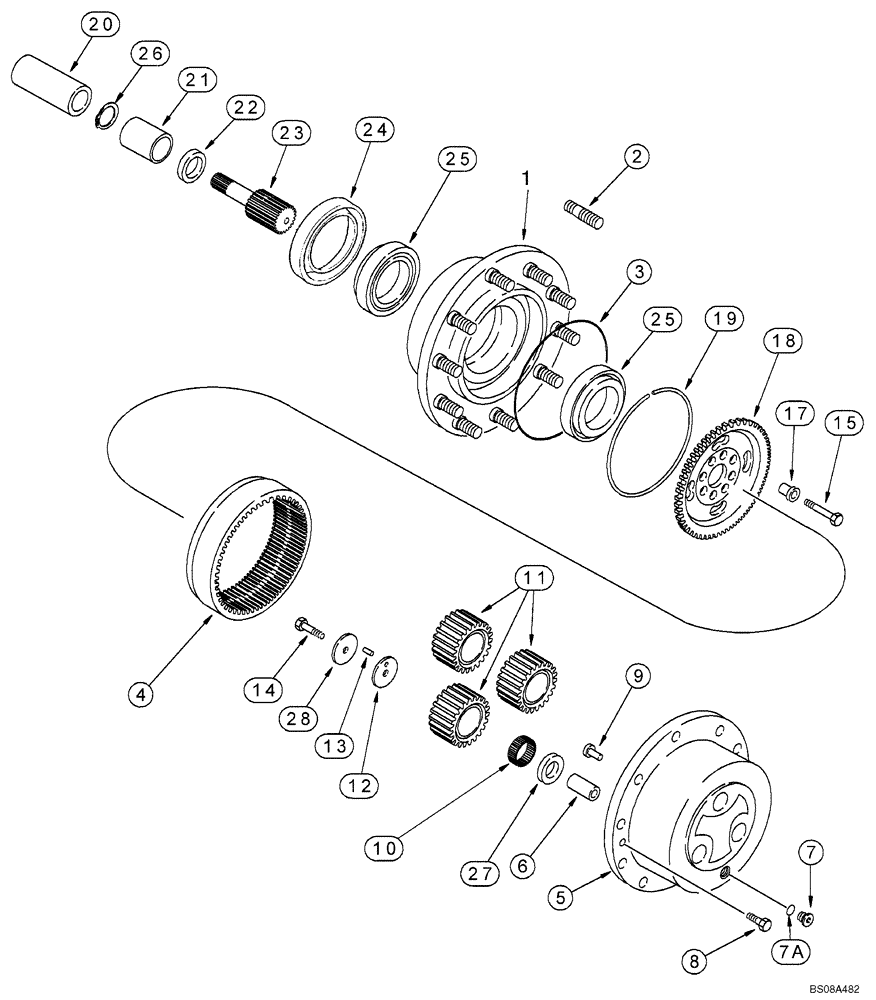

Схема запчастей Case 586G - (06-29) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN
17
14
5
4
7a
25
13
3
10
20
12
6
2
1
8
21
15
26
19
28
18
25
23
24
7
11
22
27
9

Артикул

Название

Примечание

Количество

1

87416108

SERVICE KIT

HUB ASSY, Includes (10) D142986 Stud, Ref 2

2шт.

1a

87422891

AXLE, REAR

AXLE REAR Incl. Figure 06-25 - 06-29, 07-01, 07-02; Four Spider Differential

1шт.

1a

87422891R

REMAN-REAR AXLE

Remanufactured, Rear, 4 Spider Differential

1шт.

1a

87422891C

CORE-REAR AXLE

Return Part Number Rear, 4 Spider Differential

1шт.

1a

384952A1R

REMAN-AXLE

Reman For New P/N 87422891

1шт.

1a

384952A1C

CORE-AXLE

Return Part Number Four Spider Differential

1шт.

2

D142986

STUD,88mm L

Without Flanged Collar

10шт.

2

196090A1

STUD,M22 x 88mm

With Flanged Collar, For Recessed Bolt Holes

10шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

2шт.

4

175976A1

PINION

Ring

2шт.

5

175977A1

CARRIER

Incl. 6, Use With Liquid Gasket Silastic 732, Serial Range: Carrier-Hub

2шт.

6

NSS

NOT SOLD SEPARAT

Shaft

6шт.

7

100557A1

PLUG, DRAIN,M30 x 2

Incl. 7A

2шт.

7a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

8

K395082

SCREW,M8 x 20mm

4шт.

9

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

10

175978A1

NEEDLE BEARING

Package of 10 Needles, 168 Needles Required

17шт.

11

175979A1

SUN GEAR

Pinion

6шт.

12

175980A1

THRUST WASHER

6шт.

13

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

Package of 10 Needles, Used As Pins, 6 Needles Required

1шт.

14

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

M10 x 50; 10.9

6шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

17

107071A1

BUSHING

20 mm OD

16шт.

18

310492A1

PINION CARRIER

GEAR CARRIER Ring Gear

2шт.

19

175984A1

RING, LOCKING

RING, LOCK

2шт.

20

NSS

NOT SOLD SEPARAT

Coupling, Welded To and Included With the Differential Brake Oil Auger

2шт.

21

196065A1

BUSHING

2шт.

22

196066A1

OIL SEAL

2шт.

23

358286A1

GEAR

2шт.

24

87415728

OIL SEAL

With Internal Garter Spring Seal

2шт.

25

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

26

800-2136

SNAP RING,M36, Ext

No. 36

2шт.

27

175989A1

THRUST WASHER

6шт.

28

175990A1

THRUST WASHER

6шт.

Выбрано товаров: 34
