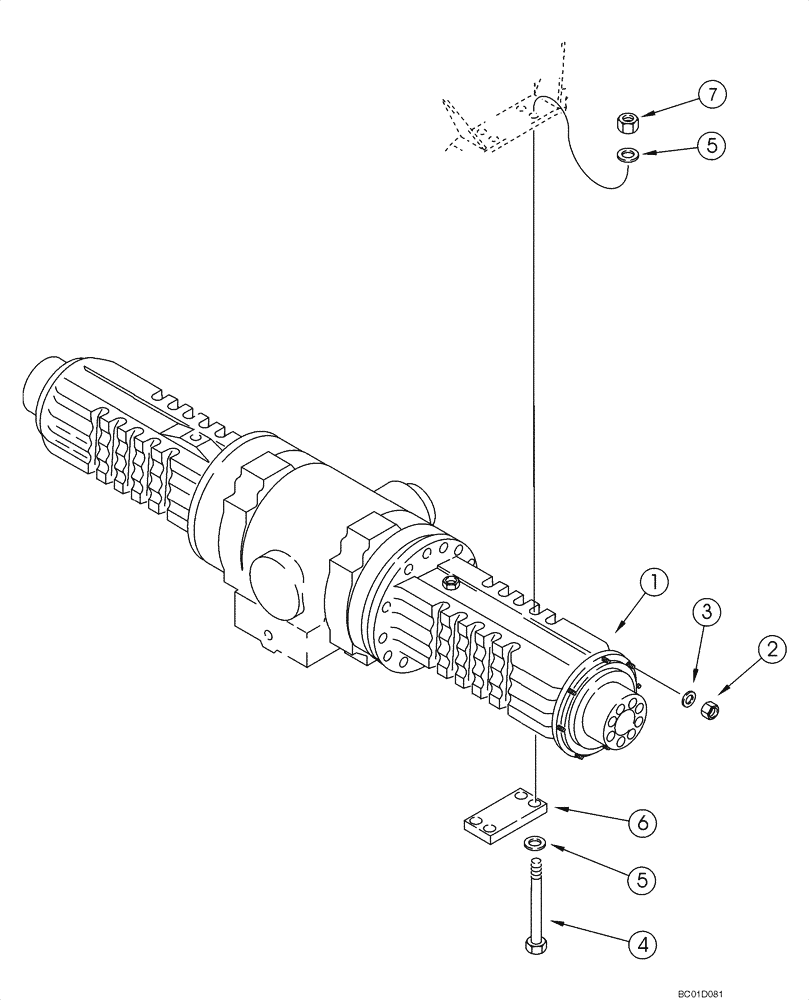

Запчасти Case 586G (06-23) - AXLE, FRONT DRIVE - MOUNTING (06) - POWER TRAIN

1

87422891

AXLE, REAR

AXLE REAR Front Drive, With Oil Temperature Sender, See Figure 06-25, Four Spider Differential

1шт.

1

87422891R

REMAN-REAR AXLE

Remanufactured, 87422891 Axle

1шт.

1

87422891C

CORE-REAR AXLE

Return Part Number, 87422891 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assembly

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm

20шт.

3

87313544

WASHER,22mm ID x 44mm OD x 5 mm Thk

22.52 ID x 44.0 OD x 5.0 mm thk, Hardened

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

6

117933A1

LARGE PLATE

PLATE, LARGE Mounting

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
