Запчасти Case 586G (06-20) - TRANSMISSION ASSY (4WD) - SHAFT, OUTPUT (06) - POWER TRAIN

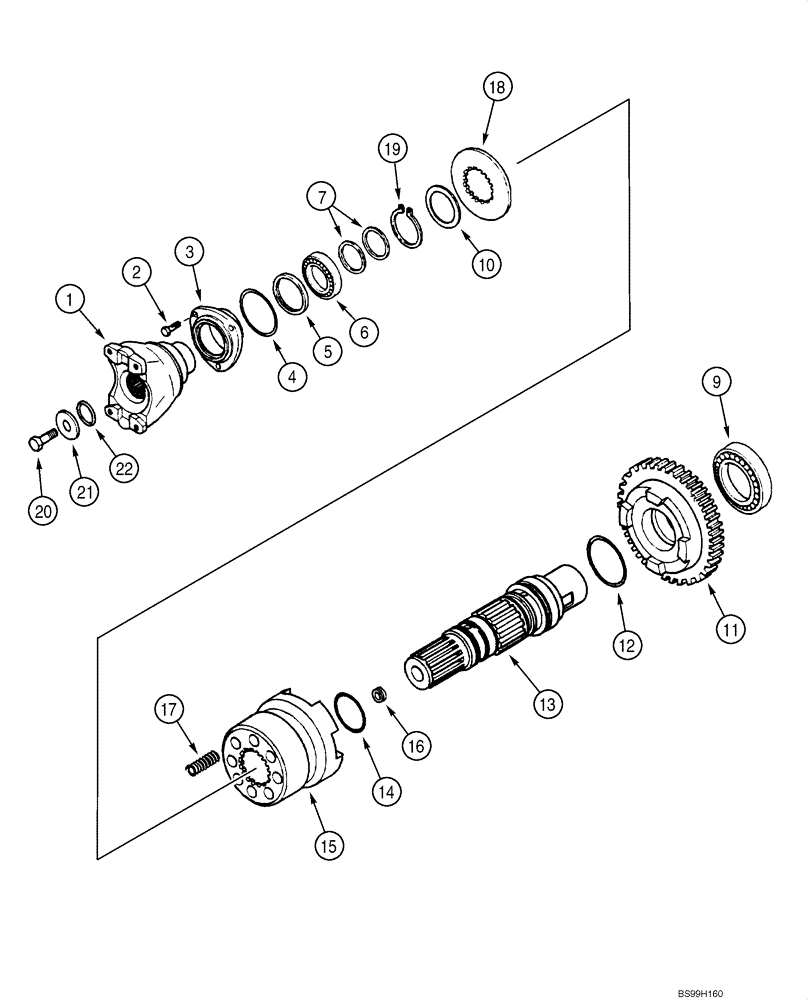

Схема запчастей Case 586G - (06-20) - TRANSMISSION ASSY (4WD) - SHAFT, OUTPUT (06) - POWER TRAIN
2
7
13
3
14
17
12
4
11
1
6
20
16
9
19
15
22
21
18
5
10

Артикул

Название

Примечание

Количество

1

233283A1

YOKE

Yoke, Front

1шт.

1a

87660861

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 22; Also Includes Parts On Figures 06-12 - 06-22

1шт.

1a

87660861R

REMAN-TRANSMISSION

Remanufactured, Four Wheel Drive

1шт.

1a

87660861C

CORE-TRANSMISSION

Return Number, Four Wheel Drive

1шт.

2

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

3

181198A1

COVER

1шт.

4

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1шт.

5

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

50 x 65 x 8 mm

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

7

358645A1

SEALING RING

2шт.

9

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

10

P2745478

WASHER

1шт.

11

366234A1

PINION,36T

Gear, Driven, 36T

1шт.

12

366235A1

O-RING

1шт.

13

366230A1

SHAFT

Output Shaft

1шт.

14

366236A1

O-RING,3.53mm Thk x 42.85mm ID

2шт.

15

366232A1

TRANSMISSION SLEEVE

1шт.

16

D142898

PLUG,M10 x 1

10 x 1 mm

1шт.

17

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

8шт.

18

366231A1

WASHER

1шт.

19

800-5145

SNAP RING,M45, Ext

1шт.

20

P3533055

SCREW,M12 x 1.25 x 25mm

12 x 25 mm

1шт.

21

P2745466

WASHER

1шт.

22

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

Выбрано товаров: 24
