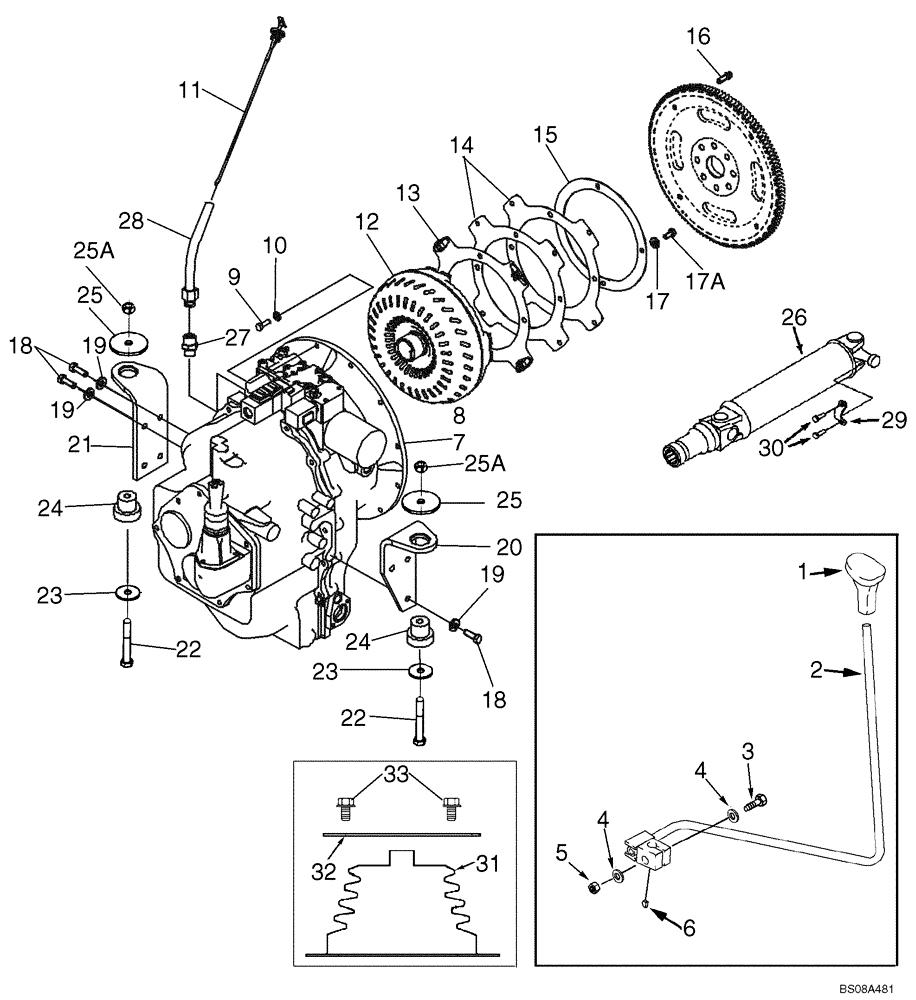

Запчасти Case 586G (06-11) - TRANSMISSION - MOUNTING (06) - POWER TRAIN

1

331961A1

KNOB

Incl. Clutch Cutout Switch, Which Is Not Serviced Separately

1шт.

2

348559A2

LEVER

1шт.

3

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

7

87660860

TRANSMISSION

2 Wheel Drive Transmission; See Figure 06-12 - 06-21

1шт.

7

87660860R

REMAN-TRANSMISSION

Remanufactured, 2 Wheel Drive

1шт.

7

87660860C

CORE-TRANSMISSION

Return Number, 2 Wheel Drive

1шт.

8

87660861

TRANSMISSION

4 Wheel Drive Transmission; See Figure 06-12 - 06-22

1шт.

8

87660861R

REMAN-TRANSMISSION

Remanufactured, 4 Wheel Drive

1шт.

8

87660861C

CORE-TRANSMISSION

Return Number, 4 Wheel Drive

1шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

11

87430618

DIPSTICK,669mm L

1шт.

12

87702194

TORQUE CONVERTER

1шт.

12

87702194R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

12

87702194C

CORE-TORQUE CONVERTR

CORE-TORQUE CONVERTER Return Number

1шт.

13

87406934

PLATE

Flex Plate With Caged Nuts

1шт.

13

47442982

KIT

Flex Plate With Caged Nuts

1шт.

14

86993546

PLATE,224mm ID x 284mm OD x 0.5mm Thk

Flex

2шт.

15

87409201

BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk

1шт.

16

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

16

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

Use with kit 47442982

4шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

17a

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

7шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

20

87735097

SUPPORT

Left Hand

1шт.

21

87735096

SUPPORT

Right Hand

1шт.

22

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

23

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

24

87488319

RUBBER MOUNTING

Insulator

2шт.

25

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2шт.

25a

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

26

REF

INSTRUCTION

Shaft Assy, Drive, See Figure 06-30

1шт.

27

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

28

395344A1

TUBE,25.4mm OD x 397.85 L

1шт.

29

86014090

RETAINER

Clamp

2шт.

30

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

4шт.

31

353353A1

BOOT

1шт.

32

353871A1

RETAINER

1шт.

33

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

4шт.
