Запчасти Case 586G (06-34) - TRANSMISSION ASSY (130786A2, A3 OR 130787A2, A3) - SHAFT, INPUT (06) - POWER TRAIN

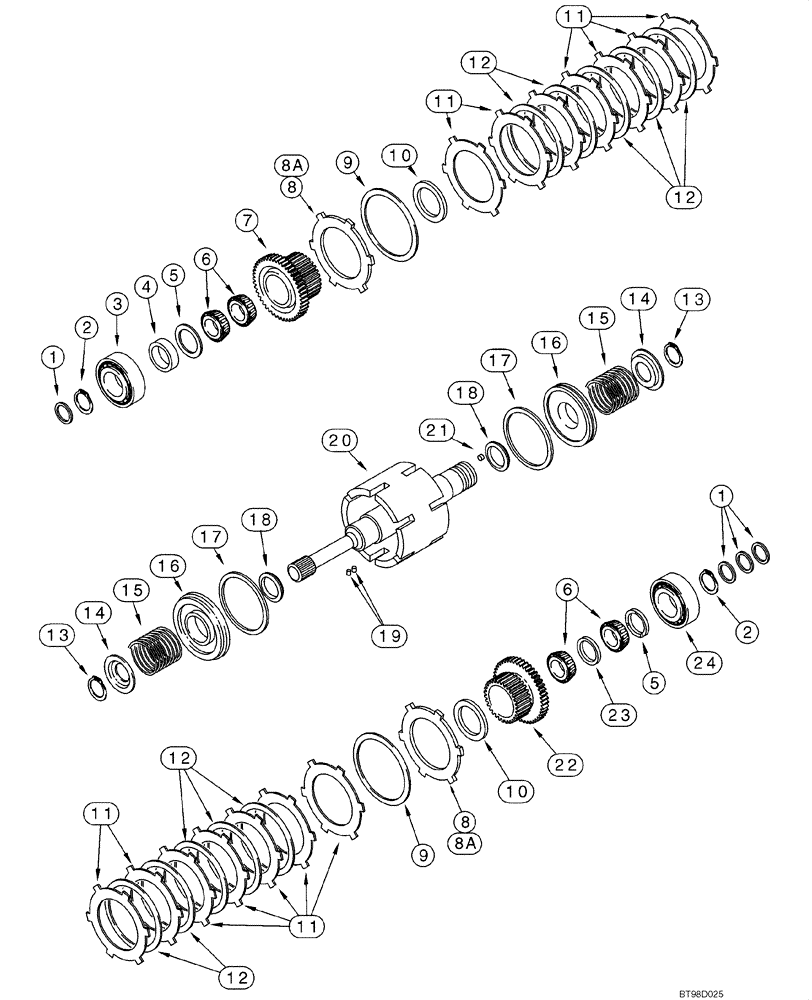

Схема запчастей Case 586G - (06-34) - TRANSMISSION ASSY (130786A2, A3 OR 130787A2, A3) - SHAFT, INPUT (06) - POWER TRAIN
21
20
1
13
8
11
16
8
11
14
18
10
6
11
10
5
11
18
4
14
9
9
6
1
12
7
23
12
15
12
12
17
8a
22
13
17
2
19
3
16
24
2
8a
15
5

Артикул

Название

Примечание

Количество

1

130786A3

TRANSMISSION

2 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-37; No Longer Available, Order 329081A3, Figure 6-39 - 6-48A

1шт.

1

130786A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130786A3C

CORE-TRANSMISSION

Return Number

1шт.

1

130787A3

TRANSMISSION

4 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-38; No Longer Available, Order 329082A3, Figure 6-39 - 6-49

1шт.

1

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181152A3

SEAL,Locking, 40.95mm ID x 45.01mm OD x 2.26mm Thk

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

181153A1

SPACER

1шт.

5

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

2шт.

6

181135A1

BEARING, NEEDLE,50mm ID x 55mm OD x 17mm W

4шт.

7

181229A1

GEAR

29 T

1шт.

8

181162A1

PLATE

3.7 mm thk, No Longer Used, Order REF 8A

2шт.

8a

310519A1

PLATE

6.2 mm thk

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

181163A1

THRUST WASHER

2шт.

11

181159A1

DISC

14-16шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

14

181161A1

PLATE, THRUST

2шт.

15

181160A2

SPRING

Detent, Replaces 181160A1 Spring; No Longer Included in Transmission Assembly, No Longer Included in 256888A3 Synchronizer Kit

2шт.

16

181155A2

PISTON

Input Shaft, Replaces 181155A1 Piston; No Longer Included in Transmission Assembly, Included in 256888A3 Synchronizer Kit

2шт.

17

181157A3

SEAL,Locking, 131.16mm ID x 138.28mm OD x 2.97mm Thk

2шт.

18

181156A3

SEAL,Locking, 49.91mm ID x 54.99mm OD x 2.46mm Thk

2шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

4шт.

20

298203A1

SHAFT

1шт.

21

D142898

PLUG,M10 x 1

10 x 1 mm

1шт.

22

181227A2

PINION

29 T

1шт.

23

181164A1

SPACER

1шт.

24

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref 16; plus parts on Figures 06-32, 06-34, 06-35. Also incl 190436A1 spring, Ref 37 on 06-37. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.

Выбрано товаров: 32
