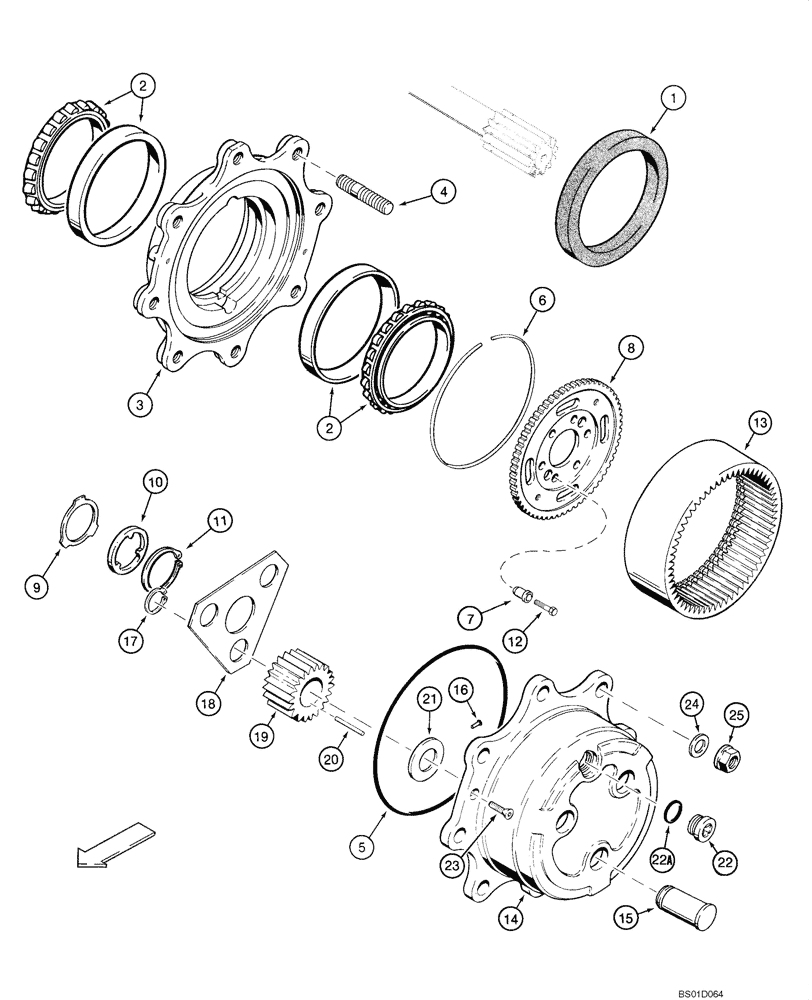

Запчасти Case 586G (06-21) - AXLE, REAR DRIVE - PLANETARY (06) - POWER TRAIN

*

With Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

1

87417387

4WD AXLE ASSY

Rear, Incl. Parts On Figures 06-17 - 06-23; Replaces 427084A1

1шт.

1

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle,

1шт.

1

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy,

1шт.

1

311569A1

OIL SEAL,130mm ID x 160mm OD x 14mm Thk

Triple Lip

2шт.

2

1966169C1

BEARING CONE,95 mm ID x 135 mm OD x 20 mm

4шт.

2

144466A1

HUB

Incl. 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Hub

1шт.

4

100556A1

STUD

8шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

6

100559A1

SPECIAL RING

2шт.

7

116426A1

BUSHING

12шт.

8

116427A1

GEAR

Ring Gear

2шт.

9

190684A1

THRUST WASHER

2шт.

10

190682A1

THRUST WASHER

2шт.

11

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

12

116425A1

BOLT

12шт.

13

100561A1

GEAR

Ring

2шт.

13

100554A1

PINION CARRIER

Incl. 100553A1, 14 - 22A

2шт.

13

100553A1

HOUSING ASSY.

Incl. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Pinion

3шт.

16

K395093

HEADED PIN,12mm OD x 15mm L

1шт.

17

800-1134

SNAP RING,M34, Ext

6шт.

18

100555A1

LARGE PLATE

2шт.

19

K395114

GEAR

Sun - Not Shown

2шт.

19

100562A1

GEAR, PLANETARY

Pinion Gear

6шт.

20

114295A1

10 NEEDLE BRG KIT

Package of 10 Needles

9шт.

21

K395091

THRUST WASHER

6шт.

22

100557A1

PLUG, DRAIN,M30 x 2

Incl. 22A

2шт.

22a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

23

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

4шт.

24

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Not Included In Assembly, Purchase Separately

16шт.

25

825-11418

NUT,M18 x 1.5, Cl 8

M18, Not Included In Assembly, Purchase Separately

16шт.

*

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.
