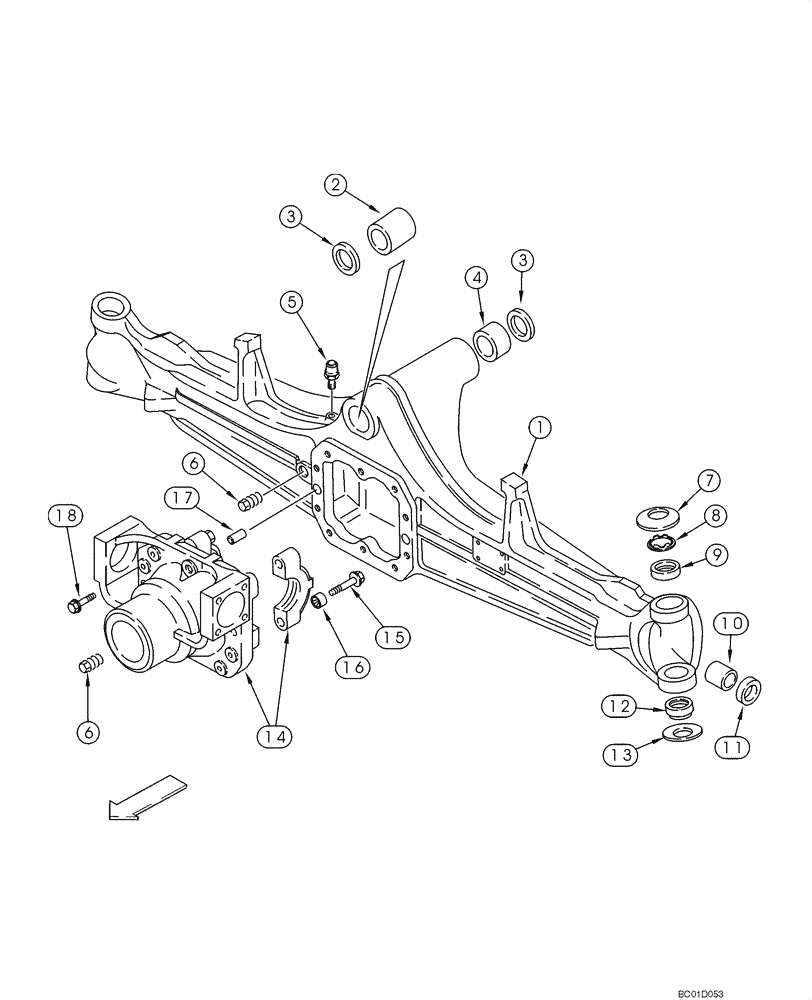

Запчасти Case 586G (06-03) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

*

Without Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

113561A3

AXLE

Steering, Rear, Incl. 06-03 - 06-09; Replaces 113561A1 And 113561A2

1шт.

113561A3R

REMAN-AXLE

585G, 586G, 588G

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

144453A1

HOUSING

Rear Axle; No Longer Available, Order 402357A1 Housing and 85824343 Seal (Ref 11)

1шт.

1

402357A1

AXLE HOUSING

Rear

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

Rear Pivot

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

Bushing, Front And Rear

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

Front Pivot

1шт.

5

1966149C2

BREATHER

Replaces 1966149C1

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

Housing, Carrier

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Upper

2шт.

8

136990A1

WASHER

2шт.

9

100522A1

BUSHING

Housing

2шт.

10

1966186C1

BUSHING

Housing

2шт.

11

1966191C1

OIL SEAL

Used With 144453A1 Housing

2шт.

11

85824343

OIL SEAL,30mm ID x 44mm OD x 14mm Thk

30 X 44 X 14, Replaces 311565A1 And 1966191C1

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

Lower

2шт.

13

122268A1

BELLEVILLE WASHER

Lower

2шт.

144454A1

SUPPORT ASSY.

Differential, Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

B17575

FLUID

89 ml, Differential Carrier to Axle Housing, Not Illustrated

1шт.
