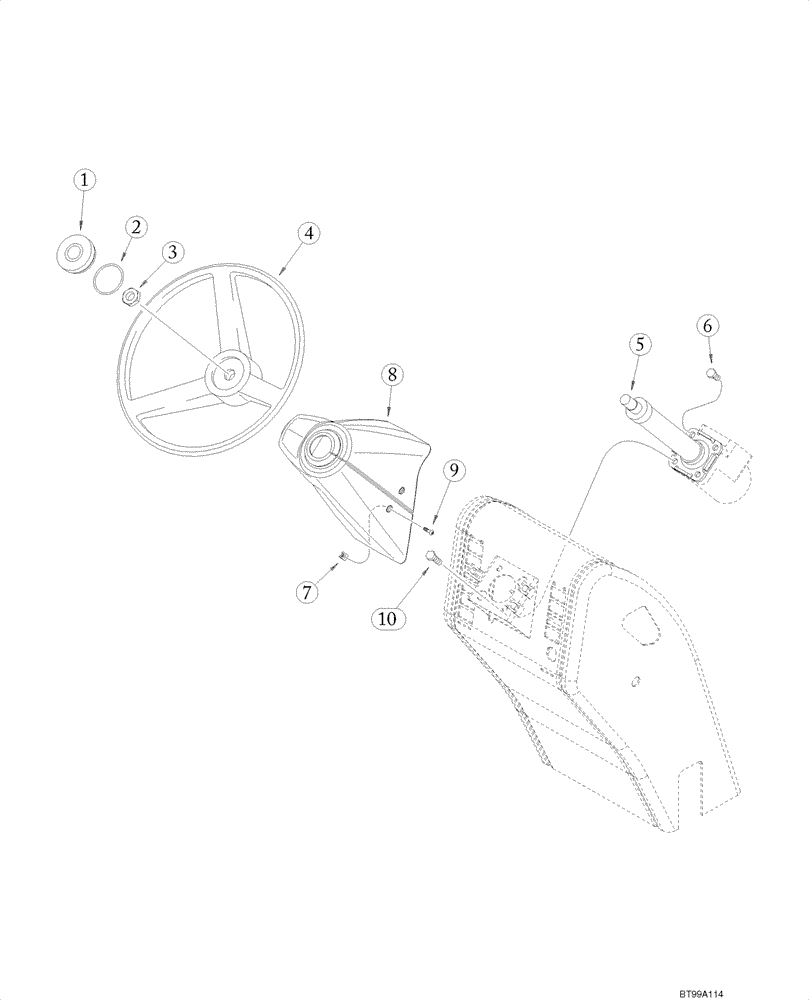

Запчасти Case 586G (05-01) - STEERING WHEEL - STEERING COLUMN (05) - STEERING

1

114882A2

CAP,Polystyrene

Replaces 114882A1

1шт.

2

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

3

1959509C1

NUT,Hex, M20 x 5, RH

1шт.

4

A65544

STEERING WHEEL

1шт.

5

328875A1

STEERING ASSY

See Figure 05-04

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

3шт.

8

332206A1

COVER

Steering Column

1шт.

9

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

3шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.
