Запчасти Case 586G (02-19) - PISTONS - CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

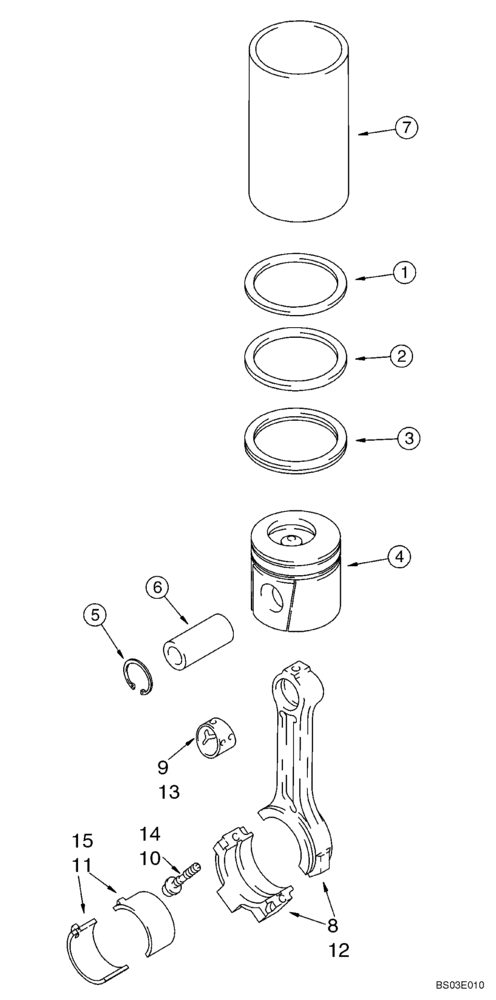

Схема запчастей Case 586G - (02-19) - PISTONS - CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
3
7
14
5
11
4
1
13
2
12
10
6
9
15
8

Артикул

Название

Примечание

Количество

*

4-390 Emissions Certified Engine

1шт.

J800345

PISTON & RINGS KIT

Standard, Use to Service Piston 3934975, Incl. J804930, 1 - 5

4шт.

J800349

PISTON & RINGS KIT

Standard, Use to Service Piston 3934976, Incl. J804930, 1 - 5

4шт.

J804980

PISTON & RINGS KIT

Standard, Use to Service Piston 3932514, Incl. J804930, 1 - 5

4шт.

J804930

PISTON RING SET

Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Standard

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

4шт.

J804981

PISTON & RINGS KIT

0,5 mm, Oversize 0,5 mm, Incl. 1 - 5

4шт.

J804931

PISTON RING SET

0,5 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 0,5 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

4шт.

J804982

PISTON & RINGS KIT

1,0 mm, Oversize 1,00 mm, Incl. 1 - 5

4шт.

J804932

PISTON RING SET

1,0 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston, Oversize 1,00 mm

1шт.

5

J920691

SPECIAL RING

Replaces J901706

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

Replaces J919053

4шт.

7

J904166

SLEEVE

Use With J804980

1шт.

*

Connecting Rod

1шт.

8

J942581

ROD, CONNECTING

Incl. 8 - 10; N.A. Built Engines Prior to SN 46231395; Great Britain Built Engines Prior to SN 21486151; Machined Rods; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

8

JR942581

REMAN-CONNECTING ROD

Built Engines Prior to SN 46231395, Machined Rods

4шт.

8

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

0,25 mm, Undersize 0,25 mm

4шт.

11

A77467

BEARING LINER

0,50 mm, Undersize 0,50 mm

4шт.

11

A77468

BEARING SET

0,75 mm, Undersize 0,75 mm

4шт.

11

A77469

BEARING SET

1,0 mm, Undersize 1,00 mm

4шт.

12

87413279

ROD, CONNECTING

Incl. 12 - 14; N.A Built Engines SN 46231395 And After; Great Britain Built Engines SN 21486150 And After; Fractured Split; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

12

87417069

REMAN-CONNECTING ROD

Built Engines SN 46231395 And After, Fractured Split

4шт.

12

87417070

CORE-ROD CONNECTING

Return Number

4шт.

13

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

1шт.

14

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

2шт.

15

87425525

CRANKSHAFT BEARING

BEARING, CON. ROD, Standard

4шт.

15

87425526

CRANKSHAFT BEARING

BEARING, CON. ROD, 0,25 mm, Oversize

4шт.

15

87425527

BEARING SET

BEARING, CON. ROD, 0,50 mm, Oversize

4шт.

15

87425528

CRANKSHAFT BEARING

BEARING, CON. ROD, 0,75 mm, Oversize

4шт.

15

87425529

CRANKSHAFT BEARING

BEARING, CON. ROD, 1,00 mm, Oversize

4шт.

Выбрано товаров: 49
