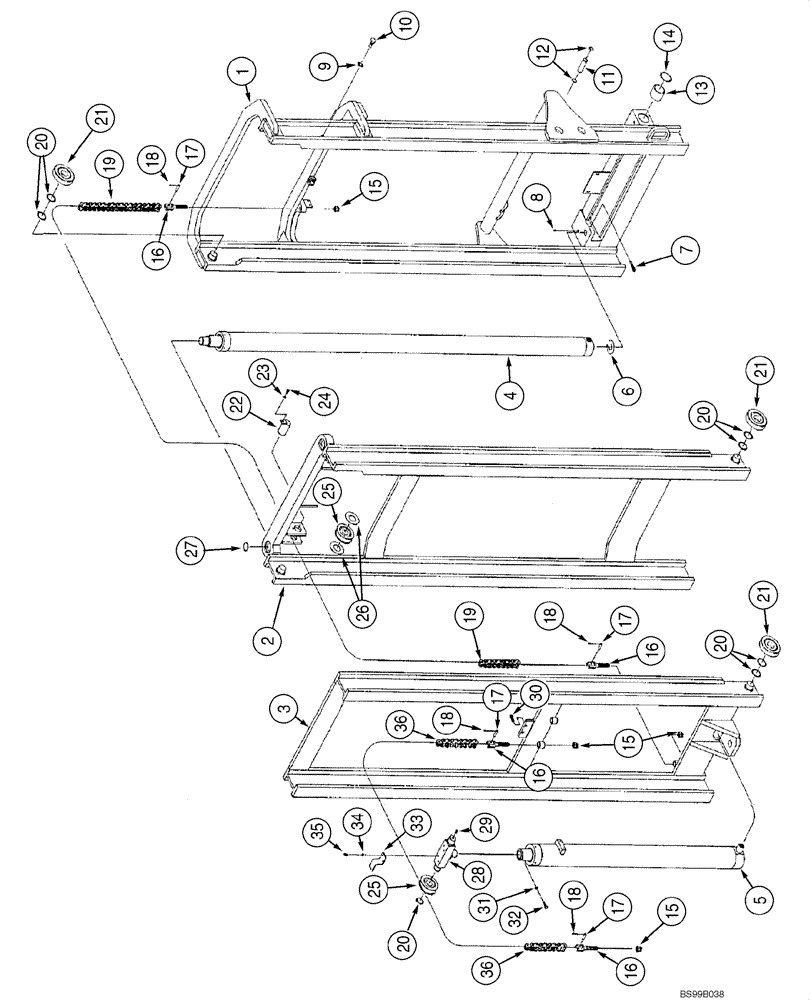

Запчасти Case 586G (09-05) - MAST - 6000 LB (09) - CHASSIS

.

Freelift Only

1шт.

.

348366A3

MAST ASSEMBLY

4,8 M (16 ft), Hook, Incl. 1 - 38, Also Incl. Parts On Pages 09-06, 09-09

1шт.

.

349444A2

KIT

KIT, MAST FREELIFT 16' 60" SHAFT 6K, INCL 348367A3

1шт.

.

348367A3

MAST ASSEMBLY

4,8 M (16 ft), Shaft, Incl. 1 - 38, Also Incl. Parts On Figure 09-06, 09-10

1шт.

.

360794A1

RAIL ASSY.

Incl. 1 - 38, Also Incl. 09-06

1шт.

1

360795A1

RAIL

Outer

1шт.

2

360796A1

RAIL

Intermediate

1шт.

3

360797A1

RAIL

Inner

1шт.

4

360792A1

CYLINDER ASSY.

Rail, See Figure 08-09

2шт.

5

360622A1

CYLINDER ASSY.

Freelift, See Figure 08-10

1шт.

6

339786A1

SHIM

0,76 mm (0,03 in)

1шт.

7

339777A1

BOLT

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

10

339778A1

BOLT

2шт.

11

339789A1

PIN

2шт.

12

103-11125

SNAP RING,#125, Ext

4шт.

13

339787A1

BUSHING

2шт.

14

103-21300

SNAP RING,3.00", Int, #300

2шт.

360805A1

CHAIN (CE)

Mast, Incl. 15 - 19

2шт.

360807A1

CHAIN (CE)

Freelift, Incl. 15 - 18, 36

2шт.

15

231-24412

LOCK NUT,3/4"-16, GB

3/4

8шт.

16

341172A1

ANCHOR

Chain, Replaces 352986A1

8шт.

17

341173A1

PIN

Replaces 352987A1

8шт.

18

432-612

COTTER PIN,3/32" x 3/4"

16шт.

19

360801A1

CHAIN (AG)

Mast

2шт.

20

339897A1

SHIM

0,76 mm (0,03 in)

1шт.

21

339898A1

ROLLER

Load

8шт.

22

352989A1

PIN

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

341171A1

SHEAVE,36.6mm ID x 107.9mm OD

4шт.

26

352990A1

RETAINER

4шт.

27

100-11156

SNAP RING,#156, Ext

4шт.

28

352991A1

VALVE

1шт.

29

353378A1

PLUG

2шт.

30

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

1шт.

33

352992A1

GUARD

2шт.

34

492-11025

LOCK WASHER,1/4"

4шт.

35

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

1/4 x 3/4

4шт.

36

363500A1

CHAIN (AG)

Freelift

2шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

Not Illustrated; Use with Ref 30

2шт.

38

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Not Illustrated; Use with Ref 30

2шт.

39

329795A1

BACKREST,1524mm (60 inch)

1524 mm (60 in), Load, Not Illustrated

1шт.

40

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Not Illustrated

4шт.

41

492-11062

BEARING WASHER,5/8"

Not Illustrated

4шт.
