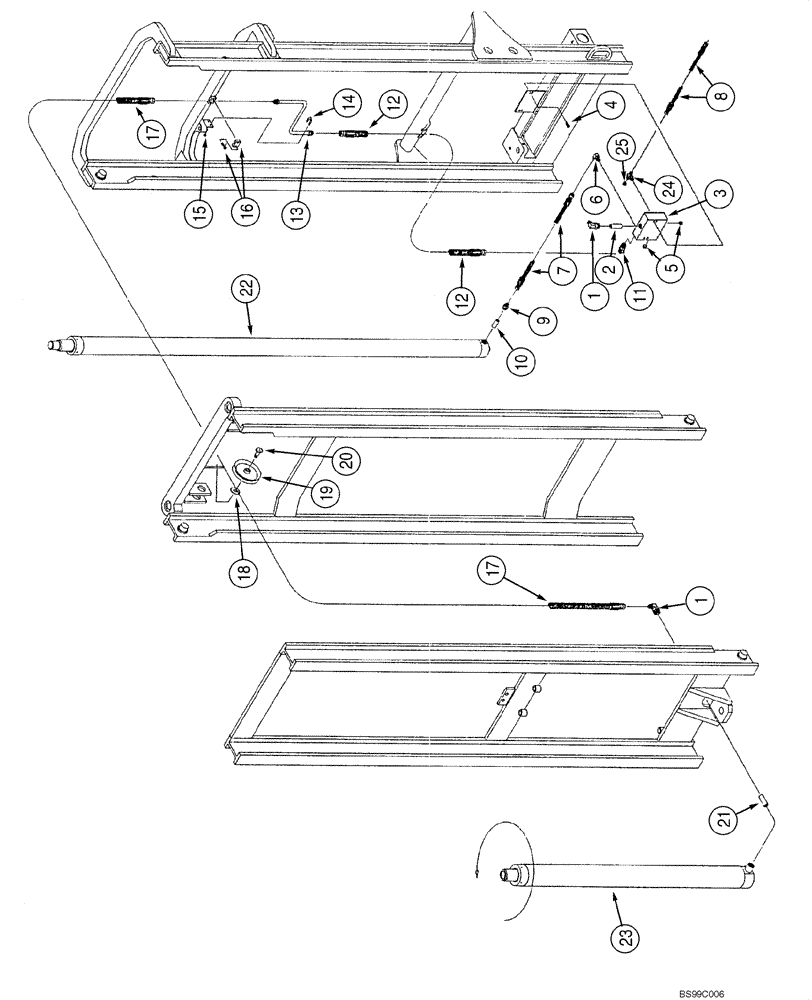

Запчасти Case 586G (09-04) - MAST - 6000 LB (09) - CHASSIS

Freelift Only

1шт.

Hydraulic System

1шт.

1

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 237-6012

2шт.

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

2

353019A1

VALVE

1шт.

3

360808A1

BLOCK

For Attaching Hose(s) 08-03, Replaces 337776A1

1шт.

4

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8 NC x 2-1/4, Mounting

2шт.

5

339834A1

PLUG

3шт.

6

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

5/16 fl x adj Or, Incl. 237-6002

2шт.

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

7

337777A1

HOSE

Right Hand

1шт.

8

337778A1

HOSE

Left Hand

1шт.

9

218-5356

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 1/16"-12, O-Ring

78 fl x 3/4 Or, Incl. 237-6008

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

352952A1

VALVE

Right Hand Side

1шт.

11

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 237-6010

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

363201A1

HOSE

Replaces 353020A1

1шт.

13

353021A1

TUBE

1шт.

14

D86366

U-BOLT

1шт.

15

231-2444

NUT,1/4"-28, GB

2шт.

16

353022A1

TUBE

Tube Support

1шт.

17

363202A1

HOSE ASSY.

Replaces 353023A1

1шт.

18

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

1шт.

19

353024A1

SHEAVE

Hose

1шт.

20

353025A1

BOLT

1шт.

21

353026A1

LIMITER, TRAVEL

LIMITER

1шт.

22

348729A1

CYLINDER ASSY.

Rail, See Figure 08-07D

2шт.

23

348743A1

CYLINDER ASSY.

Freelift, See Figure 08-08

1шт.

24

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 237-6008

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

218-755

CAP,37 Degree, 3/4"-16

1шт.

28

218-756

CAP,37 Degree, 7/8"-14

Not Illustrated

1шт.
