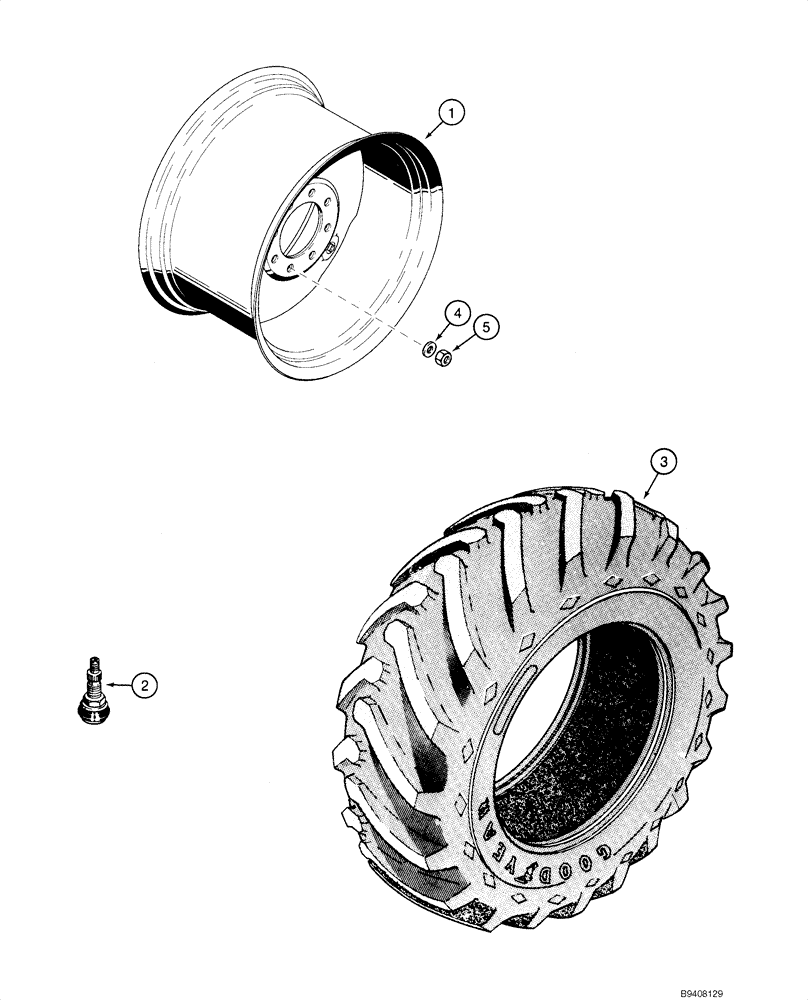

Запчасти Case 586G (06-70) - WHEELS, DRIVE (06) - POWER TRAIN

1

119241A1

WHEEL,W15Lx24, 10 Holes, CASE Power Tan

Front; 17.5L x 24" Tire - 10 Ply

2шт.

2

27549R1

VALVE STEM

Replaces A20058

2шт.

3

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

1

357552A1

RIM,24" Dia x 16" W, 10 Bolt, Power Tan

WHEEL 585G and 586G Forklift Only; 19.5L x 24 Inch Tire - 12 Ply

2шт.

2

27549R1

VALVE STEM

Replaces A20058

2шт.

3

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

1

355207A1

RIM

WHEEL 588G Forklift Only; 19.5L x 24 Inch Tire - 12 Ply

2шт.

2

27549R1

VALVE STEM

Replaces A20058

2шт.

3

REF

INSTRUCTION

Tire, Purchase Locally

2шт.

4

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

Wheel Nuts

20шт.

5

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm

20шт.
