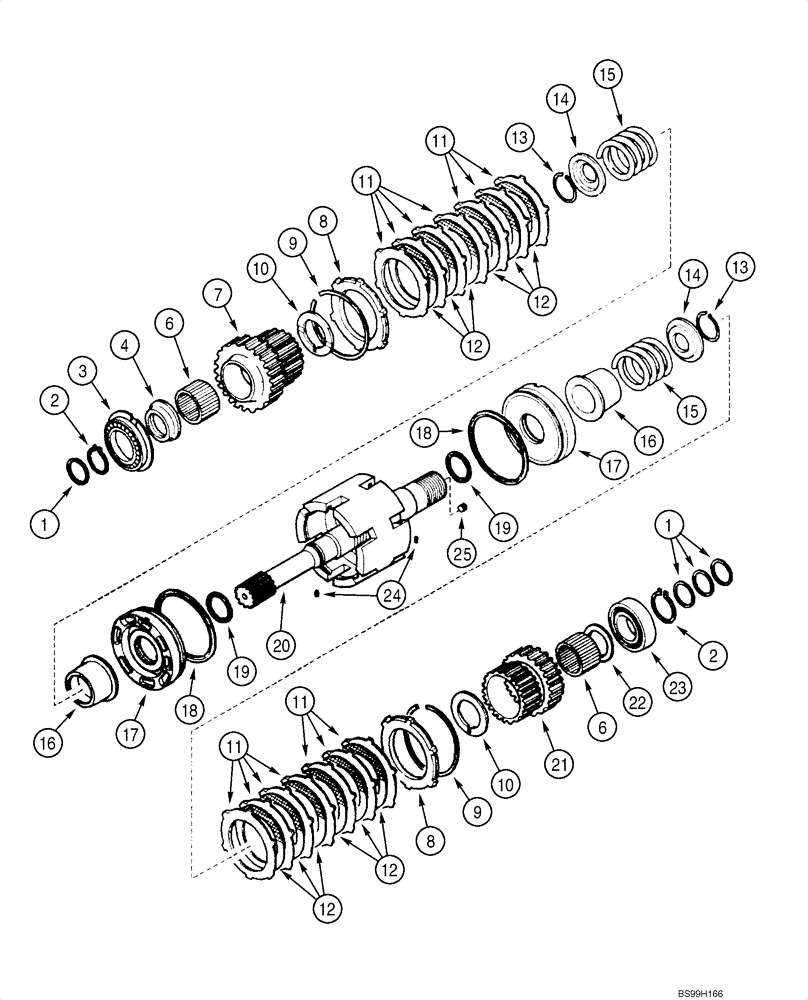

Запчасти Case 586G (06-45) - TRANSMISSION (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845, 846, 87396486, 487) - SHAFT, INPUT (06) - POWER TRAIN

1

87396486

TRANSMISSION

Two Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 06-39 - 06-48B; Replaces 329082A1, 329082A2, 329082A3, 87456845

1шт.

1

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

1

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87396487

TRANSMISSION

Four Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 06-39 - 06-49; Replaces 329082A1, 329082A2, 329082A3, 87456846

1шт.

1

87396487R

REMAN-TRANSMISSION

Remanufactured Transmission - Four Wheel Drive

1шт.

1

87396487C

CORE-TRANSMISSION

Return Part Number

1шт.

1

358645A1

SEALING RING

4шт.

2

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

2шт.

3

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

4

358635A1

SPACER

68 x 45 x 105 mm

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

7

366318A1

GEAR

29 T

1шт.

8

310519A1

PLATE

6.2 mm thk

2шт.

9

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

RING, LOCK

2шт.

10

358640A1

WASHER

2шт.

11

181159A1

DISC

14шт.

12

181158A1

CLUTCH DISC

CLUTCH DISK

12шт.

13

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

RING, LOCK

2шт.

14

181161A1

PLATE, THRUST

Pressure

2шт.

15

358637A1

SPRING

2шт.

16

358641A1

TRANSMISSION SLEEVE

2шт.

17

358644A1

PISTON

2шт.

18

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

SEALRING

2шт.

19

358642A1

SEALING RING

SEALRING

2шт.

20

358631A1

SHAFT

Input Shaft

1шт.

21

358638A1

PINION,39T

29 T

1шт.

22

358639A1

WASHER

68 x 45 x 4 mm

1шт.

23

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

24

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

25

D142898

PLUG,M10 x 1

10 x 1 mm

2шт.
