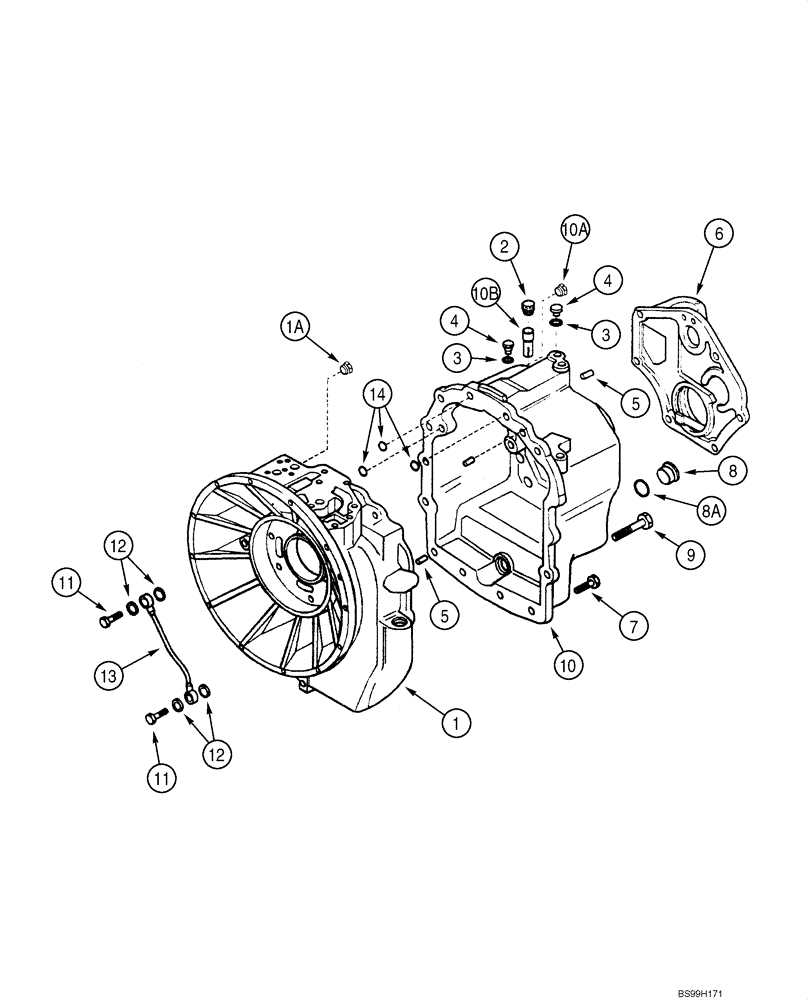

Запчасти Case 586G (06-40) - TRANSMISSION ASSY (329081A1,A2,A3 OR 87456845, 87396486) (2WD) - HOUSING (06) - POWER TRAIN

*

Two Wheel Drive Models

1шт.

1

87396486

TRANSMISSION

Two Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 06-39 - 06-48B; Replaces 329081A1, 329081A2, 329081A3, 87456845

1шт.

1

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

1

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

1

310768A1

HOUSING

Front Half, Use With Loctite 510 or 518 as a Gasket Eliminator, Incl. 1A

1шт.

1a

E135809

PLUG

If Used

1шт.

2

1530028C1

BREATHER

1шт.

2

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Breather, Not Illustrated

1шт.

3

934667R1

SEALING RING,M10 x 14 x 1

3шт.

4

181100A1

PLUG,1/8 CAS x 8

3шт.

5

K260177

PIN

10 x 25 mm

3шт.

6

181197A1

COVER

Rear Half, Use With Superbond 539 as a Gasket Eliminator

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

19шт.

8

100557A1

PLUG, DRAIN,M30 x 2

Incl. 8A

1шт.

8a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

9

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

M10 x 150

2шт.

10

310767A1

HOUSING

Rear Half, Use With Superbond 539 as a Gasket Eliminator, Incl. 10A, 10B

1шт.

10a

E135809

PLUG

If Used

1шт.

10b

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Breather, Not Illustrated

1шт.

11

181179A1

BANJO BOLT

2шт.

12

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

14 x 20 x 1.5 mm

4шт.

13

181232A1

TUBE

Lubrication

1шт.

14

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.
