Запчасти Case 586G (06-39) - TRANSMISSION ASSY (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845, 846, 87396486, 487) - FILTER, OIL (06) - POWER TRAIN

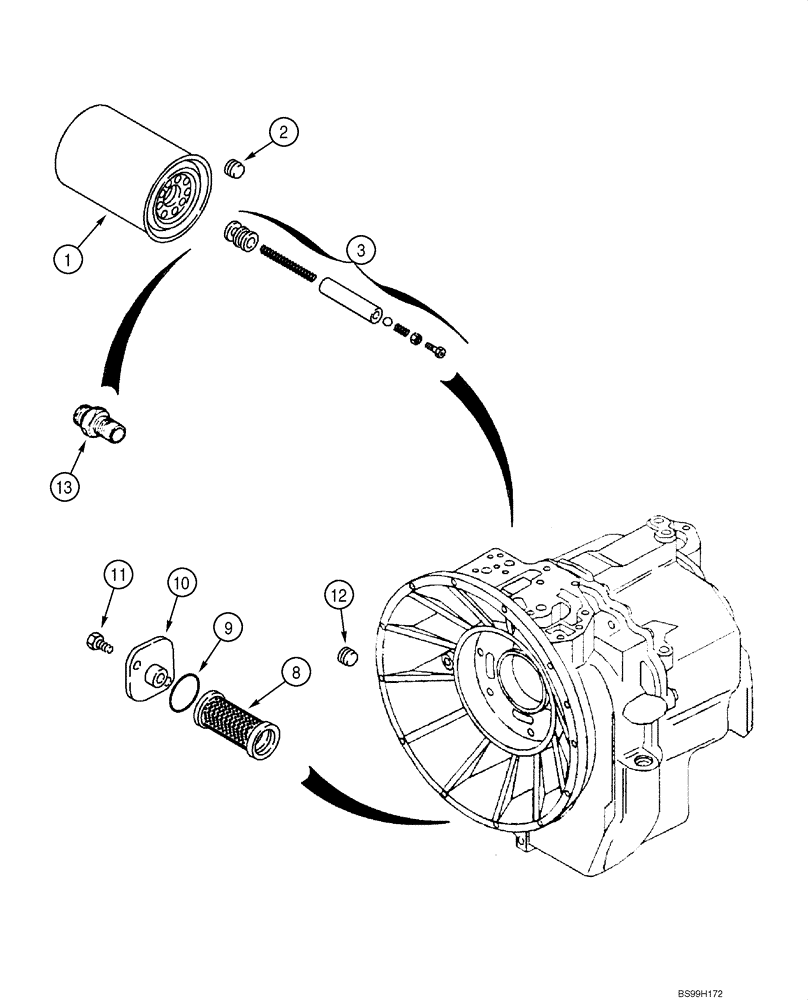

Схема запчастей Case 586G - (06-39) - TRANSMISSION ASSY (329081A1,A2,A3, 329082A1,A2,A3 OR 87456845, 846, 87396486, 487) - FILTER, OIL (06) - POWER TRAIN
8
12
2
10
1
13
3
11
9

Артикул

Название

Примечание

Количество

1

87396486

TRANSMISSION

Two Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 1, 8 - 11, 13, Also Incl. Parts On Figure 06-39 - 06-48B; Replaces 329081A1, 329081A2, 329081A3, 87456845

1шт.

1

87396486R

REMAN-TRANSMISSION

Remanufactured Transmission - Two Wheel Drive

1шт.

1

87396486C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87396487

TRANSMISSION

Four Wheel Drive, With Integrated Diff. Lock Solenoid Valve, Incl. 1 - 13, Also Incl. Parts On Figure 06-39 - 06-49; Replaces 329082A1, 329082A2, 329082A3, 87456846

1шт.

1

87396487R

REMAN-TRANSMISSION

Remanufactured Transmission - Four Wheel Drive

1шт.

1

87396487C

CORE-TRANSMISSION

Return Part Number Transmission - Four Wheel Drive

1шт.

1

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Replaces 254686A1

1шт.

2

181101A1

PLUG,M14 x 1.5

14 - 1.5 mm, Four Wheel Drive Models

1шт.

3

181274A1

REPAIR KIT

Valve, Four Wheel Drive Models

1шт.

8

278534A1

FILTER SCREEN

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

10

181219A1

COVER

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

M8 x 18

2шт.

12

181102A1

PLUG

Four Wheel Drive Models

1шт.

13

181202A1

FITTING

1шт.
