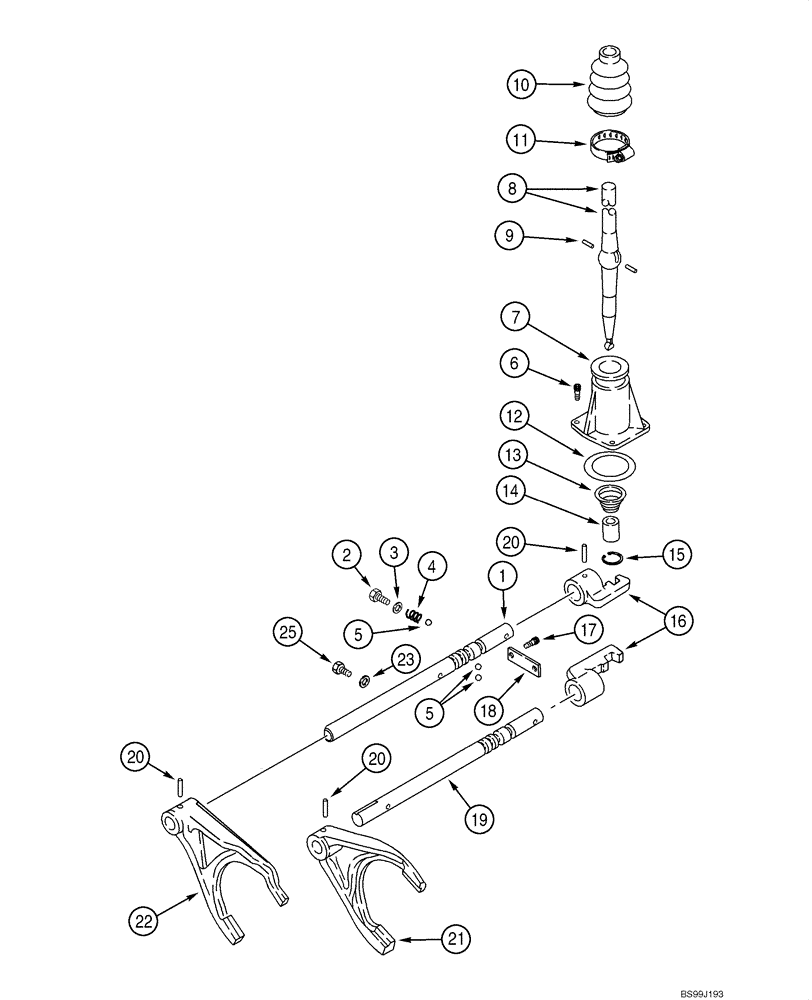

Запчасти Case 585G (06-32) - TRANSMISSION ASSY (130786A2, A3 OR 130787A2, A3) - SHIFTER MECHANISM (06) - POWER TRAIN

1

130786A3

TRANSMISSION

2 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-37; No Longer Available, Order 329081A3, Figure 6-39 - 6-48A

1шт.

1

130786A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130786A3C

CORE-TRANSMISSION

Return Number

1шт.

1

130787A3

TRANSMISSION

4 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-38; No Longer Available, Order 329082A3, Figure 6-39 - 6-49

1шт.

1

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

1

181206A1

ROD

Rail, Shifter Fork, Third and Fourth, Included in 256888A3 Synchronizer Kit, See Below

1шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

3шт.

3

1966835C1

SEALING WASHER

12 x 16 x 1.5 mm

3шт.

4

1966993C1

SPRING

2шт.

5

181139A1

BALL,10mm OD

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

7

181171A1

COVER

1шт.

8

190428A3

LEVER

No Longer Included in Transmission Assy; Included in 256888A3 Synchronizer Kit

1шт.

9

1967585C1

PIN

Shift Lever, No Longer Included in Transmission Assy; Included in 256888A3 Synchronizer Kit

2шт.

10

1967581C1

BOOT

Rubber, No Longer Included in Transmission Assy; Included in 256888A3 Synchronizer Kit

1шт.

11

181177A1

CLAMP

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

13

278533A1

SPRING

Shift Lever, Replaces 1967586C1 Spring; No Longer Included in Transmission Assy; Included in 256888A3 Synchronizer Kit

1шт.

14

278532A1

BUSHING

Replaces 181180A1 Bushing; No Longer Included in Transmission Assy, Included in 256888A3 Synchronizer Kit

1шт.

15

279039A1

RING, SNAP

RING SNAP Replaces 800-1115 Ring; No Longer Included in Transmission Assy, Included in 256888A3 Synchronizer Kit

1шт.

16

181173A1

SELECTOR

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

18

181175A1

PLATE

1шт.

19

181245A2

SHIFT RAIL

Included in 256888A3 synchronizer kit, See below

1шт.

20

905794R1

PIN,M6 x 30, Coiled

included in 256888A3 synchronizer kit, see below

2шт.

21

181203A1

SHIFTER FORK

Gear Shifter, First and Second

1шт.

22

181174A2

SHIFTER FORK

Fork, Gear Shifter, Third and Fourth, No Longer Included in Transmission Assy; Included in 256888A3 Synchronizer Kit

1шт.

23

181104A1

COPPER WASHER

5шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

256888A3

SYNCHRONIZER

KIT, Incl: Ref. 1, 8 - 10, 13 - 15, 19, 20, 22; plus parts on Figures 06-32, 06-34, 06-35. Also incl 190436A1 spring, Ref 37 on 06-37. Also incls (1) 278531A1 washer which is NSS and not shown.

1шт.
