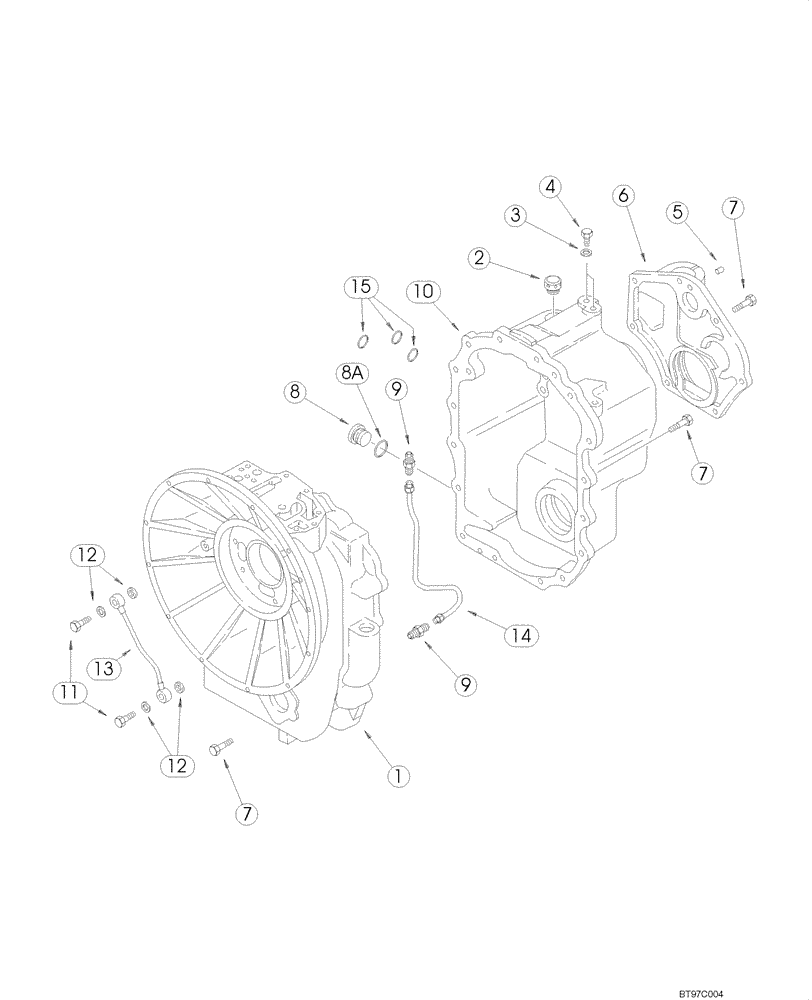

Запчасти Case 585G (06-30) - TRANSMISSION ASSY (130787A2, A3) (4WD) - HOUSING (06) - POWER TRAIN

*

4 Wheel Drive

1шт.

1

130787A3

TRANSMISSION

4 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-38; No Longer Available, Order 329082A3, Figure 6-39 - 6-49

1шт.

1

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130787A3C

CORE-TRANSMISSION

Return number

1шт.

1

310766A1

HOUSING

Front Half, Use With Loctite 510 or 518, Incl. 1A

1шт.

1a

239606A1

PLUG

Housing, Oil Passage Port, Not Illustrated

1шт.

2

1530028C1

BREATHER

1шт.

2

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Not Illustrated

1шт.

3

934667R1

SEALING RING,M10 x 14 x 1

2шт.

4

181100A1

PLUG,1/8 CAS x 8

2шт.

5

K260177

PIN

10 x 25 mm

3шт.

6

181197A1

COVER

Rear Half, Use With Loctite 510 or 518

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

23шт.

8

100557A1

PLUG, DRAIN,M30 x 2

Incl. 8A

1шт.

8a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

9

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

1/2 fl x 1/4 PT

2шт.

10

310765A1

HOUSING

Rear Half, Use With Loctite 510 or 518, Incl. 10A, 10B

1шт.

10a

E135809

PLUG

Not Illustrated

1шт.

10b

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

18 OD x 42 mm lg, Breather, Not Illustrated

1шт.

11

181179A1

BANJO BOLT

2шт.

12

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

14 x 20 x 1.5 mm

4шт.

13

181232A1

TUBE

1шт.

14

181176A1

TUBE

1шт.

15

181141A1

O-RING,17.12mm ID x 2.62mm Width

3шт.
