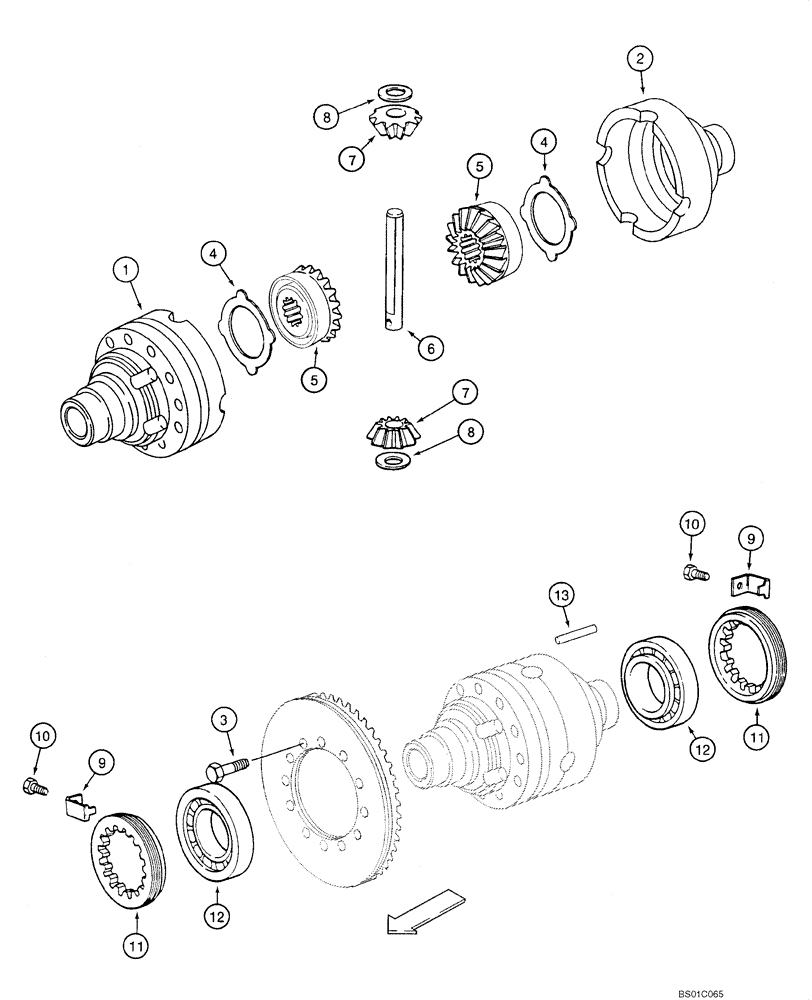

Запчасти Case 585G (06-22) - AXLE, REAR DRIVE - DIFFERENTIAL (06) - POWER TRAIN

*

With Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

1

87417387

4WD AXLE ASSY

Rear, Incl. Parts On Figures 06-17 - 06-23; Replaces 427084A1

1шт.

1

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle

1шт.

1

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy,

1шт.

1

294933A1

HOUSING

Differential, Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

4

1967003C1

THRUST WASHER

2шт.

5

N14407

GEAR

Side, No Longer Available, Order 231397A1

2шт.

5

B17575

FLUID

89 ml, Black RTV Silicone, Bolt to Differential Housing

1шт.

5

231397A1

SERVICE KIT

Differential, Service Replacement, Incl. 5 - 8, 13

1шт.

6

K395087

SHAFT

Pinion Gear, No Longer Available, Order 231397A1

1шт.

7

N14408

SUN GEAR

Pinion Gear, No Longer Available, Order 231397A1

2шт.

8

K395075

THRUST WASHER

No Longer Available, Order 231397A1

2шт.

9

1966153C1

LOCKING PLATE

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

2шт.

13

K395086

PIN

No Longer Available, Order 231397A1

1шт.
