Запчасти Case 585G (06-17) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

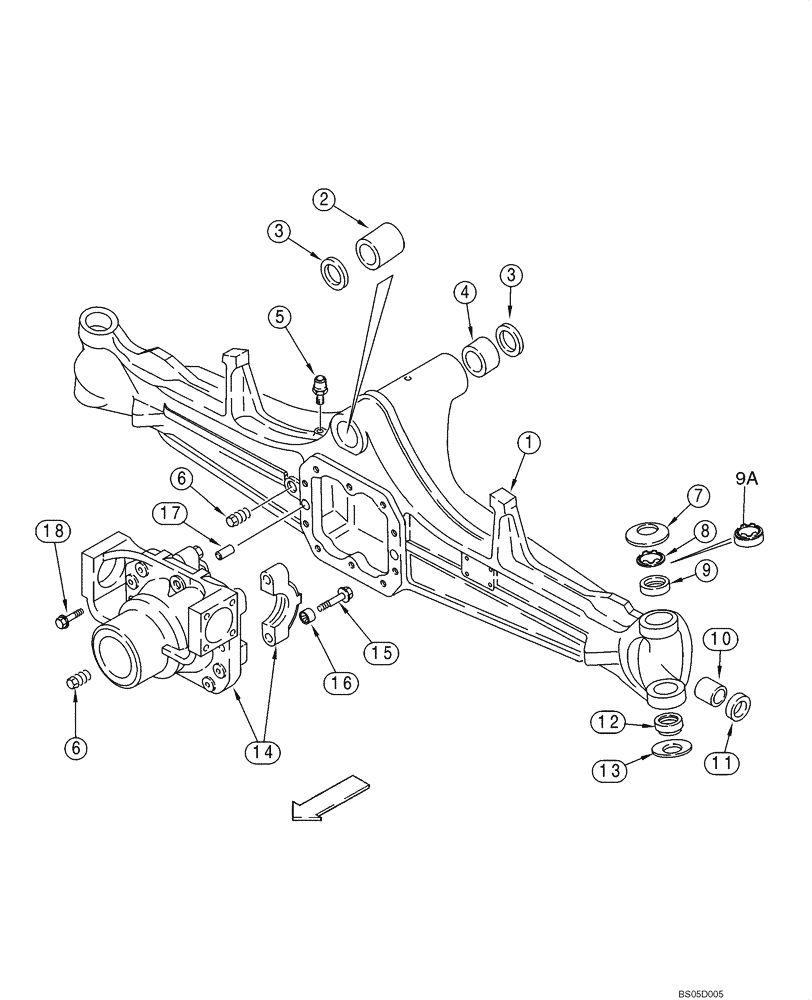

Схема запчастей Case 585G - (06-17) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN
6
10
3
6
18
13
1
5
4
16
2
8
12
17
3
14
9
7
15
11
9a

Артикул

Название

Примечание

Количество

*

With Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

87417387

4WD AXLE ASSY

Rear, Incl. Parts on Figures 06-17 - 06-23; Replaces 427084A1

1шт.

87417387R

REMAN-AXLE

Remanufactured, 87417387 Axle

1шт.

87417387C

CORE-AXLE

Return Number, 87417387 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy,

1шт.

1

427107A1

AXLE HOUSING

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

5

1966149C2

BREATHER

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

2шт.

8

136990A1

WASHER

Used With Ref 9 Bushing; Has Been Replaced By Ref 9A; Used In 427084A1 Axle; If Used

2шт.

9

100522A1

BUSHING

Used With Ref 8 Disc; Has Been Replaced By Ref 9A; Used In 427084A1 Axle; If Used

2шт.

9a

87400286

BUSHING

Replaces Two Piece Bushing (Ref 8, 9) Used On Some Models

2шт.

10

1966186C1

BUSHING

2шт.

11

311565A1

OIL SEAL

30 x 44 x 14 mm thk, Triple Lip, Used In 15 mm Deep Counterbore

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

Two Piece

2шт.

13

122268A1

BELLEVILLE WASHER

2шт.

144454A1

SUPPORT ASSY.

Differential, Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Carrier to Axle Housing

1шт.

Выбрано товаров: 27
