Запчасти Case 585G (06-10) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

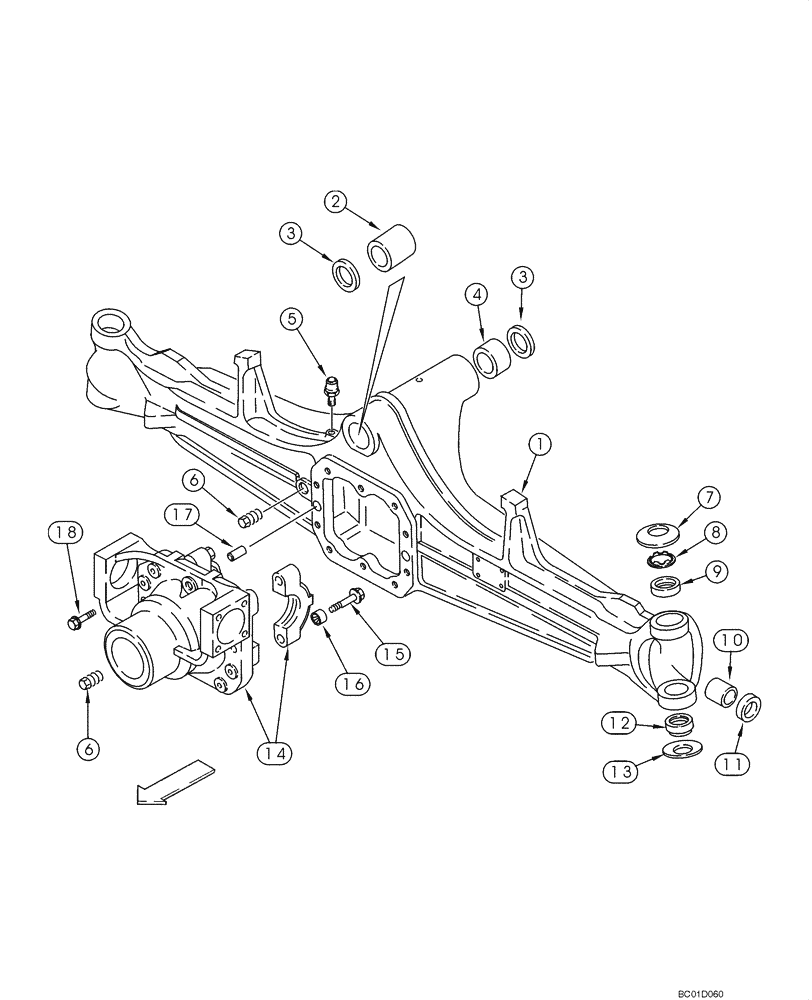

Схема запчастей Case 585G - (06-10) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN
3
8
17
2
4
10
12
15
9
6
6
18
13
3
1
7
5
11
14
16

Артикул

Название

Примечание

Количество

With Remote Lube

1шт.

4 Wheel Drive

1шт.

If Used

1шт.

381380A1

4WD AXLE ASSY

Incl. 06-10 - 06-16, No Longer Available, Order 87417387, See Figure 06-17

1шт.

1

381409A1

AXLE HOUSING

Rear, No Longer Available, Order 427107A1 And 85824343, REF 11

1шт.

1

427107A1

AXLE HOUSING

Rear

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

5

1966149C2

BREATHER

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

2шт.

8

136990A1

WASHER

2шт.

9

100522A1

BUSHING

2шт.

10

1966186C1

BUSHING

2шт.

11

1966191C1

OIL SEAL

30 X 44 X 11 mm thk, Used In 13 mm Deep Counterbore, If Used

2шт.

11

85824343

OIL SEAL,30mm ID x 44mm OD x 14mm Thk

30 x 44 x 14, Triple Lip, Used In 15 mm Deep Counterbore, If Used; Replaces 311565A1

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

Two Piece

2шт.

13

122268A1

BELLEVILLE WASHER

2шт.

144454A1

SUPPORT ASSY.

Differential, Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Carrier

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

17

1966138C1

DOWEL

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

B17575

FLUID

89 ml, Black RTV Silicone, Differential Carrier to Axle Housing

1шт.

Выбрано товаров: 26
