Запчасти Case 585G (06-09) - AXLE, REAR DRIVE - RING AND PINION (06) - POWER TRAIN

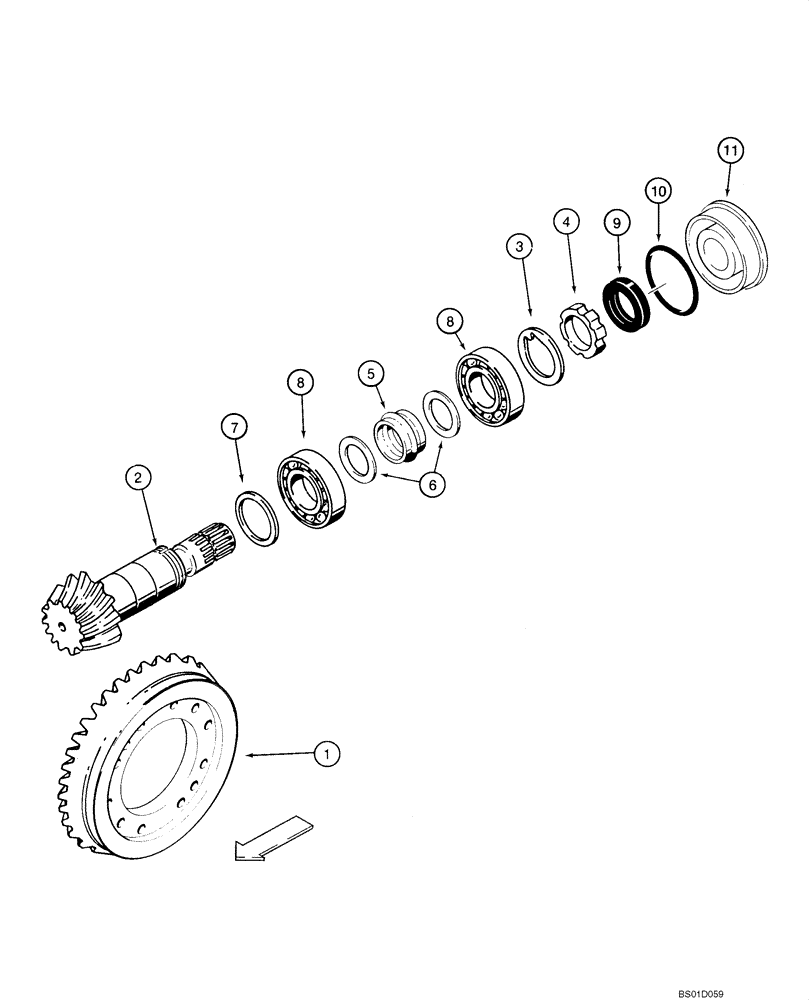

Схема запчастей Case 585G - (06-09) - AXLE, REAR DRIVE - RING AND PINION (06) - POWER TRAIN
9
11
8
8
5
7
10
2
3
6
4
1

Артикул

Название

Примечание

Количество

*

Without Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

1

113561A3

AXLE

Steering, Rear, Incl. 06-03 - 06-09; Replaces 113561A1 And 113561A2

1шт.

1

113561A3R

REMAN-AXLE

585G, 586G, 588G

1шт.

1

113561A3C

CORE-AXLE

Return Number

1шт.

*

144460A1

GEAR SET

Ring and Pinion, Incl. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Gear, Ring, Differential

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, Pinion, Differential

1шт.

3

9968031

WASHER,41mm ID x 62mm OD x 2mm Thk

Replaces K261065

1шт.

4

K261014

RING NUT,M40 x 1.5

1шт.

5

1349058C1

SPACER

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

1шт.

B17575

FLUID

89 ml, Differential Cover to Differential Carrier, Not Illustrated

1шт.

Выбрано товаров: 28
