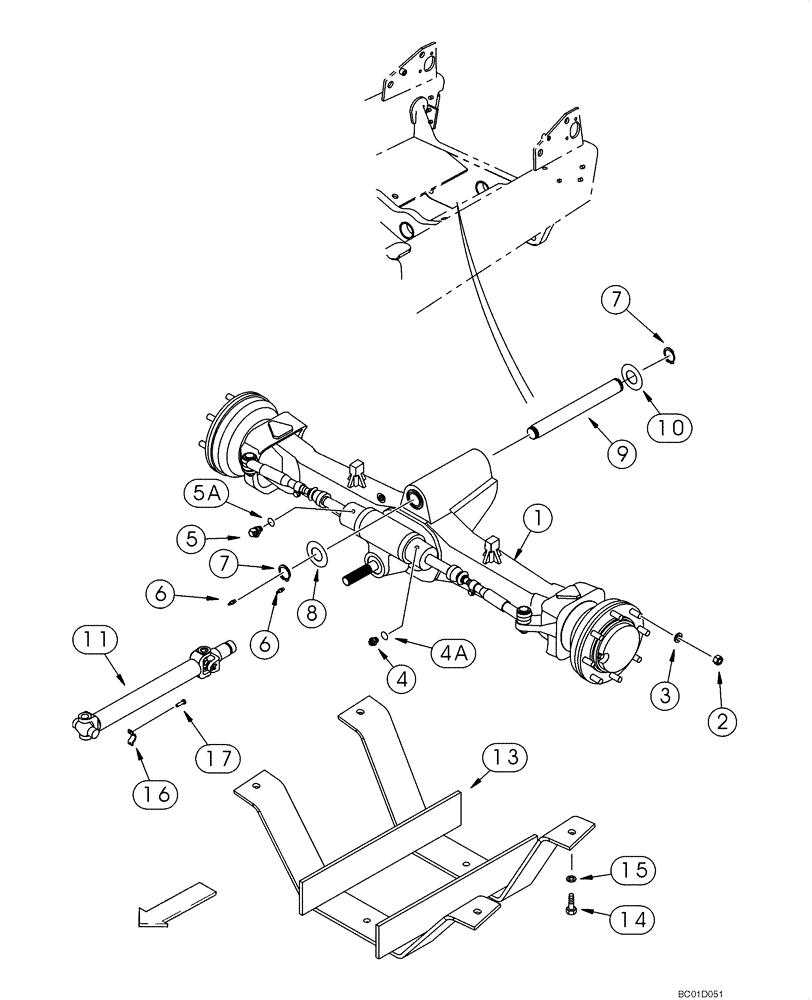

Запчасти Case 585G (06-01) - AXLE, REAR DRIVE - MOUNTING (06) - POWER TRAIN

*

Without Remote Lube

1шт.

*

4 Wheel Drive

1шт.

*

If Used

1шт.

1

113561A3

AXLE

Steering, Rear, See Figure 06-03 - 06-09; Replaces 113561A1 And 113561A2

1шт.

1

113561A3R

REMAN-AXLE

585G, 586G, 588G

1шт.

1

113561A3C

CORE-AXLE

Return Number

1шт.

2

825-11418

NUT,M18 x 1.5, Cl 8

M18

16шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

16шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Incl. 4A

1шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Incl. 5A

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

7

800-44050

SNAP RING,M50, Ext

No. 50

2шт.

8

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

2 x 4 x 1/16

1шт.

9

337783A1

PIN,50mm OD x 436.5mm L

436.5 mm lg

1шт.

10

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

2-1/2 x 4-1/2 x 3/16

1шт.

11

284713A1

DRIVE SHAFT

Rear Drive Shaft, See Figure 06-24

1шт.

13

137223A2

GUARD

Drive Shaft

1шт.

14

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

15

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

4шт.

16

90-6682T1

CLAMP

Strap Mount, Drive Shaft

2шт.

17

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.
